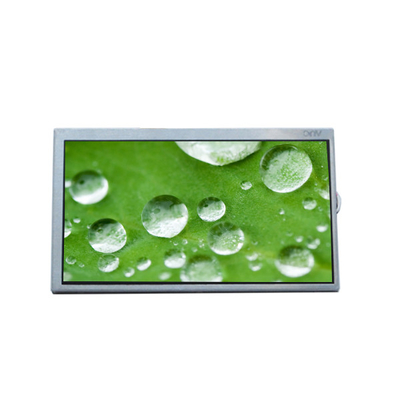

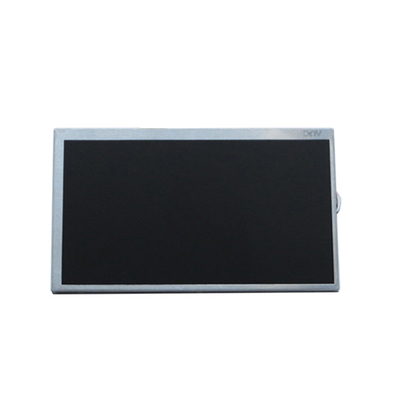

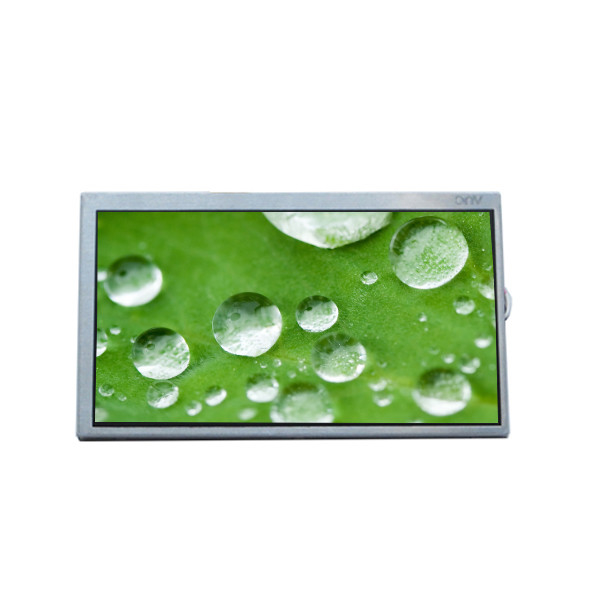

A101SW02 V0 10.1 Inch 1024*600 LCD Screen for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A101SW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A101SW02 V0 | Screen Size: | 10.1" |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×600, WSVGA 117PPIss | Active Area(mm): | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 230.28(H)×133.5(V)×1.28(D) Mm | Display Colors: | 262K 45%NTSC |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Used For: | Netbook PC、Digital Photo Frame、Portable DVD Player |
| D-IC Detail: | COG Built-in 1 Source + 2 Gate Chips | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Product Description
A101SW02 V0 10.1 Inch 1024*600 LCD Screen for AUO
A101SW02 V0 Product details :
| Brand | AUO |
| Model P/N | A101SW02 V0 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 1024(RGB)×600, WSVGA 117PPIss |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Outline Dim. | 230.28(H)×133.5(V)×1.28(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 6.8% (Typ.)(with Polarizer) |
| Support Color | 262K 45%NTSC |
| Light Source | No B/L |
| Designed For | Netbook PC,Digital Photo Frame,Portable DVD Player |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 1 source + 2 gate chips |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
A101SW02 V0 Kindly Reminder :
1.Please make sure the brand and model before buying, so as to avoid unnecessary trouble to you!
2.If the number of the need for more, please contact us, we will help you to arrange more quantity.
3.Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4.We are not responsible for the possibly additional import duties,
remote area charges, taxor other Customs related fee.
5.If you have any problems of payment, please contact us.
A101SW02 V0 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,
please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
A101SW02 V0 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
A101SW02 V0 Guarantee:
1.All items will be strictly tested before shipping.
2.Warranty is 90 days.
A101SW02 V0 Refund&Return:
1.If the item is defective, pls notify us within 3 days after receiving.
2.Items should be returned with original package if possible.
Gentlehint:Due to regional weather and other factors,thedelivery timeof China Post Ai Mail needs 10 to 50 days. Please be patient when you choose the China Post Air Mail.
A101SW02 V0 FAQ:
Q: How long is the warranty of A101SW02 V0 ?
A: 90days warranty .
Q: How can I trace my order of A101SW02 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods A101SW02 V0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for A101SW02 V0 ?
A: Of course!sample order is welcome !
A101SW02 V0 Shippment & Packing
