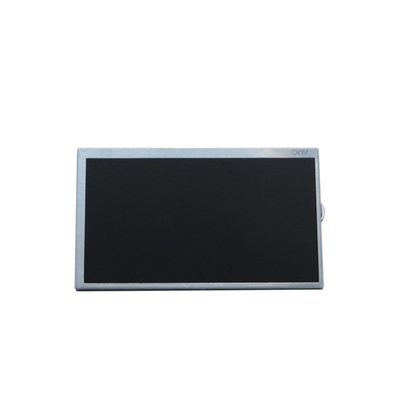

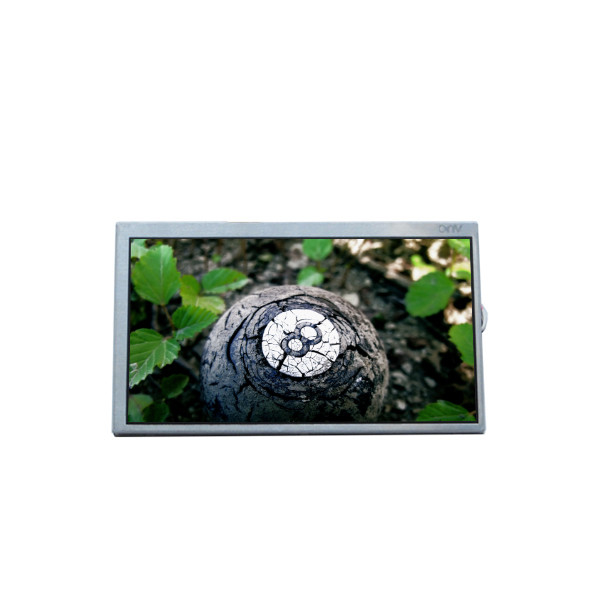

A070VW08 V1 7.0 Inch 800*480 LCD Screen for Digital Photo Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VW08 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A070VW08 V1 | Screen Size: | 7.0" |
|---|---|---|---|
| Pixel Number: | 800×480(RGB), WVGA 133PPI | Active Area(mm): | 152.4(W)×91.44(H) Mm |
| Outline Size: | 160.8(W)×99.83(H)×1.43(D) Mm | Display Colors: | 16.7M 50%NTSC |
| Viewing Angle: | 65/65/50/60 (Typ.)(CR≥10) | Used For: | Digital Photo Frame、Portable DVD Player |
Product Description
A070VW08 V1 7.0 Inch 800*480 LCD Screen for Digital Photo Frame
A070VW08 V1 Product details :
| Brand | AUO |
| Model P/N | A070VW08 V1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 800×480(RGB), WVGA 133PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | - |
| Outline Size | 160.8(W)×99.83(H)×1.43(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.5% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 50%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COGBuilt-in 1 source chips |
| Panel Weight | TBD |
| Application | Digital Photo Frame,Portable DVD Player |
| Signal Interface | TTL (1 ch, 8-bit) + SPI, 60 pins FPC |
| Input Voltage | 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
