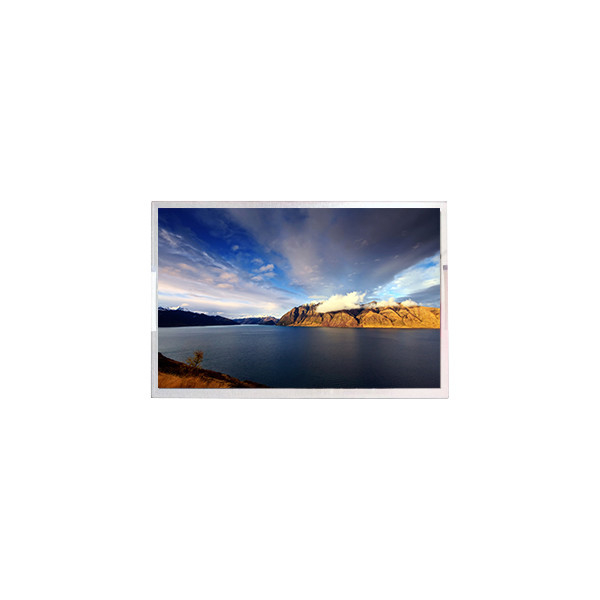

M190PW01 V7 19.0 Inch 1440*900 LCD Screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M190PW01 V7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M190PW01 V7 | Screen Size: | 19.0" |
|---|---|---|---|
| Pixel Number: | 1440(RGB)×900, WXGA+ 89PPI | Active Area(mm): | 408.24(W)×255.15(H) Mm |
| Bezel Opening: | 412.24(W)×259.15(H) Mm | Outline Size: | 428(W)×278(H)×11.5(D) Mm |
| Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) | Used For: | Desktop Monitor |
Product Description
M190PW01 V7 19.0 Inch 1440*900 LCD Screen panel
M190PW01 V7 Product details :
| Brand | AUO |
| Model P/N | M190PW01 V7 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.24(W)×259.15(H) mm |
| Outline Dim. | 428(W)×278(H)×11.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 65% NTSC |
| Light Source | CCFL [2 pcs] , 50K hours , W/O Driver |
| Weight | 1.70Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
M190PW01 V7 Kindly Reminder :
1.Please make sure the brand and model before buying, so as to avoid unnecessary trouble to you!
2.If the number of the need for more, please contact us, we will help you to arrange more quantity.
3.Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4.We are not responsible for the possibly additional import duties,
remote area charges, taxor other Customs related fee.
5.If you have any problems of payment, please contact us.
M190PW01 V7 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,
please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
M190PW01 V7 Shipment:
1.Worldwide shipping.
2.we ship it by DHL to all the customer,it arrive you in 3-7days,and some country may be need to pay some duty fees,It depend on the receiver’s country policy.
If you need me to ship it by low fees courier and not custom fees,you can inform us so that we can help you choose to ship it by HK post,but it need to arrive you in 15-20 day.
3.We are not responsible for any import fees,remote area charges,taxes or other Customs fees.
M190PW01 V7 Return goods:
1. If some of the items you received aren't of perfect quality,we would resiponsibly arrange your refund or replacement. But the items must remain their orginal condition.
2.If the items are defective, please notify us within 3 days of delivery.
3. Stock availability subject to previous sales. All parts quoted are new and unused and are in original factory packaging unless specified.
4.The buyer is responsible for all the shipping cost incurred.
5. BEFORE PLACING PURCHASE ORDER RE-VALIDATE QUOTATION.
M190PW01 V7 FAQ:
Q: Do you accept sample orders of M190PW01 V7 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of M190PW01 V7 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of M190PW01 V7 ?
A: The order will be shipped within 2-3 working days after received your payment.
M190PW01 V7 Shippment & Packing
