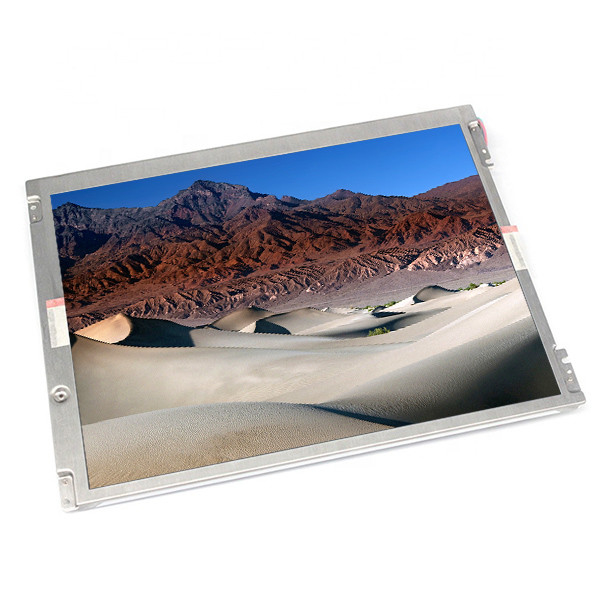

Name: 12.1 inch 82ppi lcd screen LQ121S1DG41 LCD monitor lcd display panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LQ121S1DG41
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ121S1DG41
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

LQ121S1DG41

Diagonal Size:

12.1 Inch

Pixel Format:

800(RGB)×600 [SVGA] 82PPI

Active Area:

246(H)×184.5(V) Mm

Outline Dim.:

276(H)×209(V)×11(D) Mm

Bezel Area:

249.0(H)×187.5(V) Mm

Weight:

660g (Max.)

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

12.1 inch 82ppi lcd screen LQ121S1DG41 LCD monitor lcd display panel

LQ121S1DG41 Product details :

SHARP LCD SCREEN LQ121S1DG41
manufacturer	SHARP
Model Name	LQ121S1DG41
screen size	12.1inch
Screen type	LCM, a-Si TFT-LCD
Resolution	800(RGB)×600 SVGA 82PPI
Pixel configuration	RGB Vertical Stripe
Display size	246 × 184.5 (H×V) mm
physical area	276 × 209 × 11 (H×V×D) mm
open area	249.0 × 187.5 (H×V) mm
Contrast	Matte, Hard coating (3H)
Display	370 cd/m² (Typ.)
contrast	450:1 (Typ.) (Transmission)
Viewing angle	70/70/50/60 (Typ.)(CR≥10)
display mode	TN, Normally White, Transmissive
Number of color	262K , 50% NTSC
Reaction time	10/25 (Typ.)(Tr/Td)
Backlight type	2 pcs CCFL , 50K hours , Without Driver
Refresh rate	60Hz
Touch function	No touch
Panel weight	660g (Max.)
Signal	41 pins LVDS (1 ch, 6-bit) , terminal
drive voltage	3.3/5.0V (Typ.)
working	Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C
12.1 inch 82ppi lcd screen LQ121S1DG41 LCD monitor lcd display panel

LQ121S1DG41 Payment Information:

T/T (Wire Transfer) / PayPal / western Union / MoneyGram

LQ121S1DG41 Shippment & Packing

12.1 inch 82ppi lcd screen LQ121S1DG41 LCD monitor lcd display panel 0

LQ121S1DG41 Shipment Information:

All the parts will be tested before shipment.

We can ship to you by DHL / FedEX / TNT / UPS / EMS… ,

you can choose the shipping method you prefer.

The buyer is responsible for any tax or duty charged by their country.

LQ121S1DG41 Our Services:

1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).

2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.

We bear the shipping cost from return the part in guarantee day

3. If the items are defective, please notify us within 3 days of delivery.

4. Any items must be returned in their original condition to qualify for a refund or replacement.

5. The buyer is responsible for all the shipping cost incurred.

LQ121S1DG41 Contact Us:

If you have need any parts,pls feel free to contact me.

If you have any questions,pls contact me as soon as possible.

We will try our best to give you Good quality, competitive price, professional service and on-time delivery is our promise.

We are looking forward to make business with you for a long time.

LQ121S1DG41 FAQ:

Q: How can I trace my order of LQ121S1DG41 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of LQ121S1DG41 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of LQ121S1DG41 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LQ121S1DG41 ?

A: Of course!If you make a large order, we will give you a discount.
