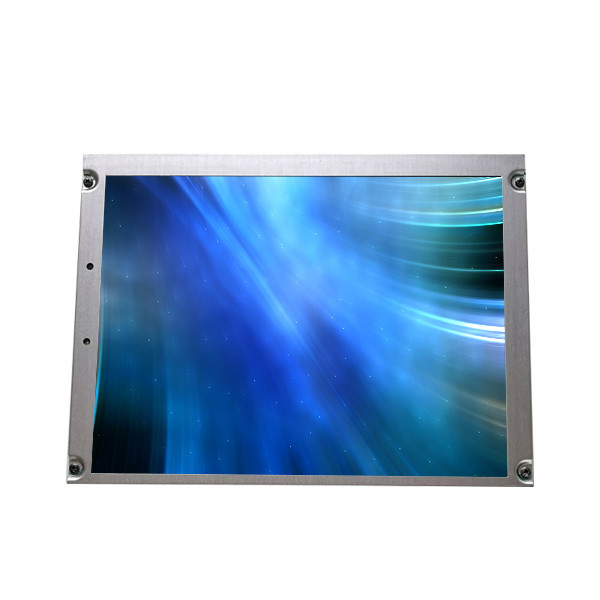

12.1 inch 82ppi lcd screen NL8060BC31-27 for Industrial machine controller
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC31-27 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL8060BC31-27 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600 (SVGA) 82PPI | Active Area(mm): | 246 × 184.5 (H×V) |
| Outline(mm): | 280 × 210 × 13.7 (H×V×D) | Bezel Area(mm): | 249.0 × 187.5 (H×V) |
| Mass: | 740/770g (Typ./Max.) | Used For: | Industrial |
Product Description
12.1 inch 82ppi lcd screen NL8060BC31-27 for Industrial machine controller
NL8060BC31-27 Product details :
| NEC LCD Screen NL8060BC31-27 | |
| Manufacturer | NEC |
| Model Name | NL8060BC31-27 |
| Screen Size | 12.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)*600 [SVGA] 82PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 246 * 184.5 mm (H*V) |
| physical dimension | 280 * 210 * 13.7 mm (H*V*D) |
| Visual size | 249.0 * 187.5 mm (H*V) |
| Surface treatment | Clear, Hard coating (3H) |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 600: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 70/70/45/55 (Typ.)(CR≥10) |
| responding speed | 8/25 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 40% NTSC |
| Backlight type | 2 pcs CCFL, without driver |
| Screen weight | 740/770g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |

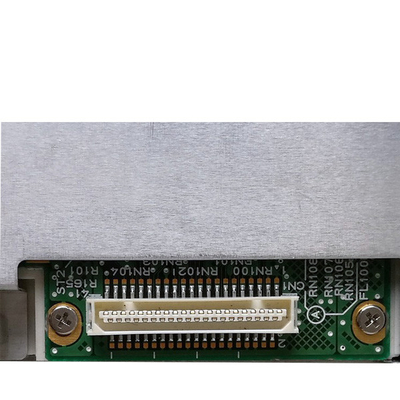

| signal system | CMOS (1 ch, 6-bit), connector, 41 pins |
| Supply voltage | 3.3/5.0V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 12.1 inch 82ppi lcd screen NL8060BC31-27 for Industrial machine controller | |
