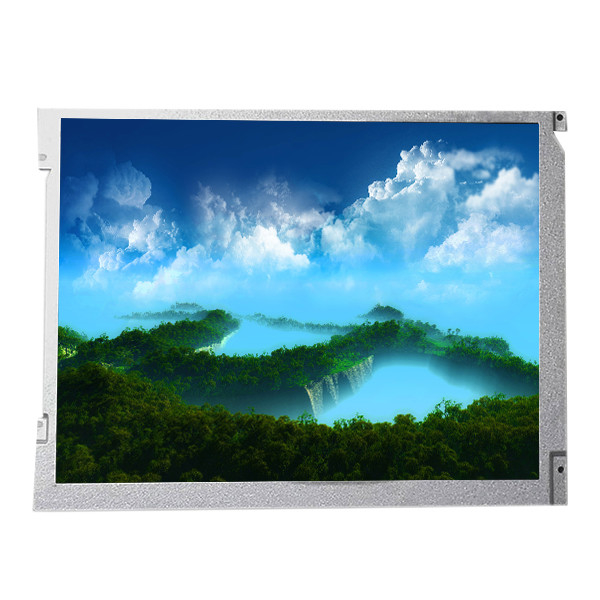

12.1 inch 82ppi lcd screen LQ121S1LG81 Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ121S1LG81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ121S1LG81 | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 82PPI | Display Area: | 246(W)×184.5(H) Mm |
| Bezel Opening: | 249.0(W)×187.5(H) Mm | Outline Size: | 276(W)×209(H)×9.6(D) Mm |
| Panel Weight: | 600g (Max.) | Application: | Industrial |
Product Description
12.1 inch 82ppi lcd screen LQ121S1LG81 Display Panel
LQ121S1LG81 Product details :
| SHARP LCD SCREEN LQ121S1LG81 | |
| manufacturer | SHARP |
| Model Name | LQ121S1LG81 |
| screen size | 12.1inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 SVGA 82PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 246(horizontal)×184.5(vertical) mm |
| physical area | 276 (horizontal) × 209 (vertical) × 9.6 (thickness) mm |
| open area | 249.0(horizontal)×187.5(vertical) mm |
| Contrast | Matte, Hard coating (3H) |
| Display | 450 cd/m² (Typ.) |
| contrast | 800:1 (Typ.) (Transmission) |
| Viewing angle | 80/80/80/60 (Typ.) (CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 262K , 50% NTSC |
| Reaction time | 30 (Typ.)(Tr+Td); |
| Backlight type | WLED , 50K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Panel weight | 600g (Max.) |
| Signal | 20 pins LVDS (1 ch, 6-bit) , terminal |
| drive voltage | 3.3V (Typ.) |
| working | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| 12.1 inch 82ppi lcd screen LQ121S1LG81 Display Panel | |
LQ121S1LG81 Description:
1: Products: We have all the spare parts and accessories for all the models of mobile phones,laptops, and tablet PC
2 : Price can be negotiable based on quantity; delivery terms;
3 : Samples: We can offer samples ,but we kindly ask you pay for samples and the freight.
4: Quality guarantee: We will inspect the appearance and test functions of all of our items before shipping, so it is very important for our customers to let professional operators test and install them.
5: Package: All the items will be packed very well to avoid damage.
6: After-service: We provide best after-service, any problem will be solved successfully and smoothly, 100% satisfaction guaranteed.
LQ121S1LG81 Payment:
1. We accept T/T(bank transfer), Western Union, Paypal for now.
2. Choosing Paypal need to pay extra 3% of total amount as handling charge.
3. If you have any problems of payment, please contact us freely.
LQ121S1LG81 Shippment & Packing
LQ121S1LG81 Packing:
1. new in retail box or packed as bulk one per you required
2. pack materials with outer carton box and put on your shipping mark before shipping
3. professrional packing make sure shock-proof and safe arrival.
LQ121S1LG81 Shipping:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
Russian customer attention: We can only send by EMS to Russia, EMS usually takes more days to arrive, so your patience is really appreciated.
LQ121S1LG81 FAQ:
Q: If I place order now,when will you ship the goods of LQ121S1LG81 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of LQ121S1LG81 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LQ121S1LG81 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LQ121S1LG81 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
