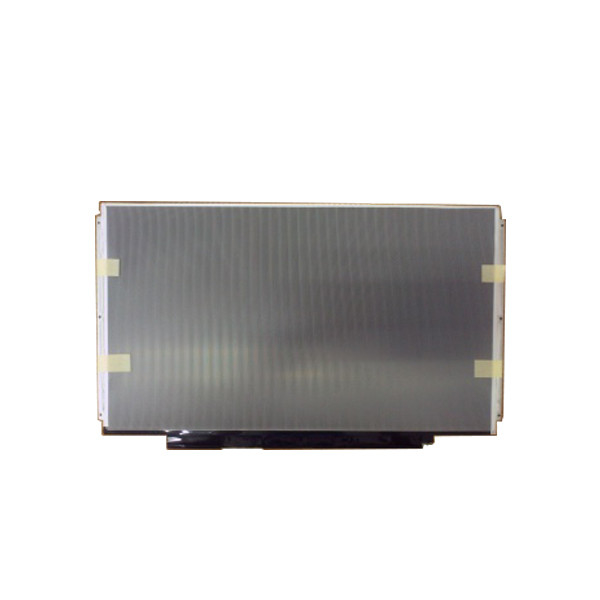

B133XW04 V2 CELL 13.3 Inch 1366*768 LCD Screen Screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B133XW04 V2 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B133XW04 V2 CELL | Screen Size: | 13.3" |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768, WXGA 118PPI | Active Area(mm): | 293.42(W)×164.97(H) Mm |
| Outline Size: | 301.92(W)×174.82(H)×1.27(D) Mm | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
| Display Colors: | 262K 60% NTSC | Used For: | Laptop |
| D-IC Detail: | COG Suggest 2 Source + 2 Gate Chips | Power Supply: | 3.3V (Typ.) |
Product Description
B133XW04 V2 CELL 13.3 Inch 1366*768 LCD Screen Screen for Laptop
B133XW04 V2 CELL Product details :
| Brand | AUO |
| Model P/N | B133XW04 V2 CELL |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | - |
| Outline Dim. | 301.92(W)×174.82(H)×1.27(D) mm |
| Luminance | 0 cd/m² |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Plate Thickness | 0.50+0.50 mm |
| Support Color | 262K 60% NTSC |
| Form Style | - |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Transmittance | - |
| Light Source | No B/L |
| Designed For | Laptop |
| Touch Panel | Without |
| D-IC Detail | COG Suggest 2 source + 2 gate chips |
| Interface Type | LVDS (1 ch, 6-bit)40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
B133XW04 V2 CELL Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
B133XW04 V2 CELL Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
B133XW04 V2 CELL Shippment:
Usually we will prepare and ship your goods within 1 working day.
Pls check if your item is in good condition upon receipt of it.
Delivery time:
----Via Express: Generally 7-10 working days.
----Via Air Mail: Generally 30-50working days.
B133XW04 V2 CELL Feedback:
1)To appreciate your business, any paying customer will receive a positive feedback.
2)We fail when you consider to leave any feedback other than positive one. In this case, we would like you to kindly let us know how we could improve our service to better serve you. Thank you in advance.
B133XW04 V2 CELL After-sale Service:
1)warranty for 3 months, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accept the goods .Please contact us and sent photo about product to us as soon as possible .
We will complaint the delivery company.
B133XW04 V2 CELL FAQ:
Q: Can you test the lcd panel B133XW04 V2 CELL before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order B133XW04 V2 CELL ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order B133XW04 V2 CELL ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd B133XW04 V2 CELL ?
A: 90 days .
B133XW04 V2 CELL Shippment & Packing
