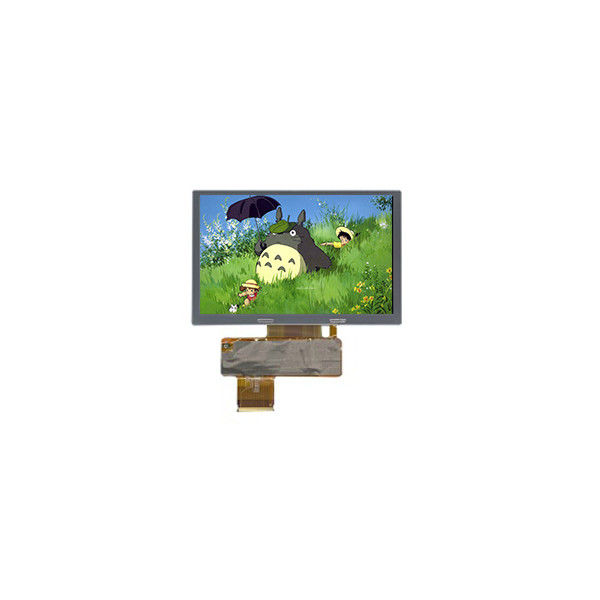

TM060RDH04 60 Pins 6.0 Inch LCD Screen 800*480 LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM060RDH04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM060RDH04 | Screen Size: | 6.0" |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480, WVGA 155PPI | Active Area(mm): | 133.2(W)×73.8(H) Mm |
| Bezel Area(mm): | 136.4(W)×76.7(H) Mm | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) |
| Display Colors: | 262K/16.7M 50%NTSC | Used For: | Digital Photo Frame、Portable DVD Player |
Product Description
TM060RDH04 60 Pins 6.0 Inch LCD Screen 800*480 LCD Panel
TM060RDH04 Product details :
| Brand | TIANMA |
| Model P/N | TM060RDH04 |
| Diagonal Size | 6.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 155PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 133.2(W)×73.8(H) mm |
| Bezel Opening | 136.4(W)×76.7(H) mm |
| Outline Size | 145.5(W)×87.8(H)×5.7(D) mm |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 50%NTSC |
| Backlight | 3S7PWLED, 20K hours, No Driver |
| Mass | 113.3g |
| Used for | Digital Photo Frame,Portable DVD Player |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6/8-bit), 60 pinsFPC |
| Voltage Supply | 3.3/9.84/19.0/-7.0V (Typ.)(VCC/AVDD/VGH/VHL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
TM060RDH04 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.
We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
TM060RDH04 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
TM060RDH04 Shipping Information:
We ship to worldwide by DHL,UPS,FEDEX,TNT,EMS ,Normal airmail and agency. It depends on buyer’s requirements.
Delivery Time: We will ship the items within 2 working days after receive the payment.
TM060RDH04 Warranty & Maintenance:
We offer the 1month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.We also provide 3monthfree maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
TM060RDH04 FAQ:
Q: If I place order now,when will you ship the goods of TM060RDH04 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of TM060RDH04 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods TM060RDH04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of TM060RDH04 ?
A: We accept T/T , Paypal , western union .
