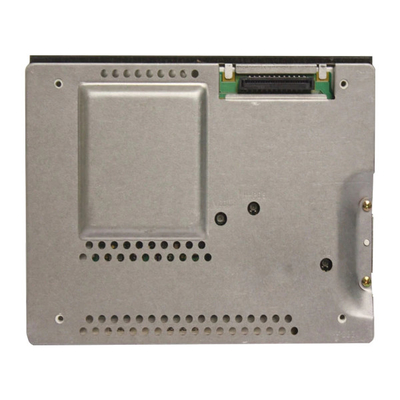

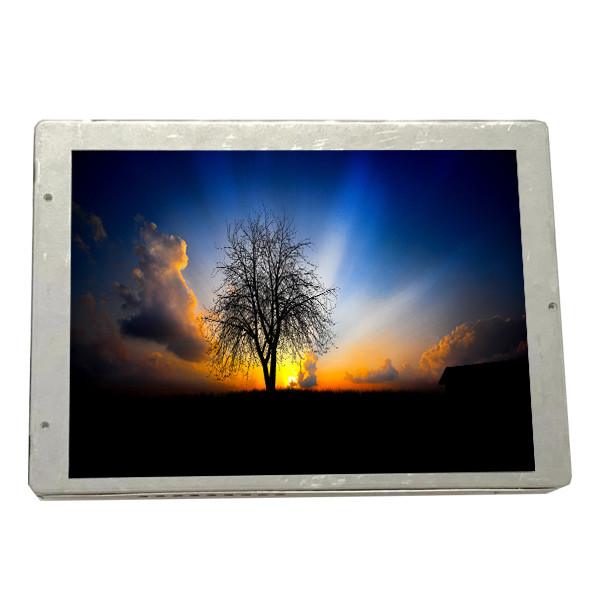

5.6'' industrial lcd panel display LQ6AN101 for Sharp
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ6AN101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ6AN101 | Screen Size: | 5.6 Inch |
|---|---|---|---|
| Pixel Number: | 320(RGB)×234 71PPI | Active Area(mm): | 114.2 × 83.5 (H×V) |
| Outline(mm): | 140 × 102.7 × 20 (H×V×D) | Color Depth: | Full Color |
| Mass: | 255±25g | Used For: | Industrial / Gaming |
Product Description
5.6'' industrial lcd panel display LQ6AN101 for Sharp
LQ6AN101 Product details :
| Sharp LCD Screen LQ6AN101 | |
| Panel Brand | Sharp |
| Panel Model | LQ6AN101 |
| screen size | 5.6inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 320(RGB)×234, 71PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 114.2 × 83.5 mm (H×V) |
| physical dimension | 140 × 102.7 × 20 mm (H×V×D) |
| Brightness | 250 (Typ.) |
| Contrast Ratio | 100 : 1 (Min.) [Transmission] |
| Viewing Angle | 45/45/10/30 (Min.)(CR≥10) |
| Optical mode | TN, Normally White, Transmissive |
| Number of colors | Full color |
| Response time | 15/20 (Typ.)(Tr/Td) ms |
| View Direction | 6 o'clock |
| Backlight type | 1 pcs CCFL , 10K hours, with inverter |
| refresh rate | 60Hz |
| Touch Screen | Without |
| screen weight | 255±25g |
| Designed For | Industrial / Gaming |
| signal system | Analog RGB + Composite Video (NTSC/PAL) , terminal, 24 pins |
| Supply voltage | 12.0V (Typ.) |
| maximum rating | Storage temperature: -25 ~ 70 °C Operating temperature: 0 ~ 65 °C |
| 5.6'' industrial lcd panel display LQ6AN101 for Sharp | |
