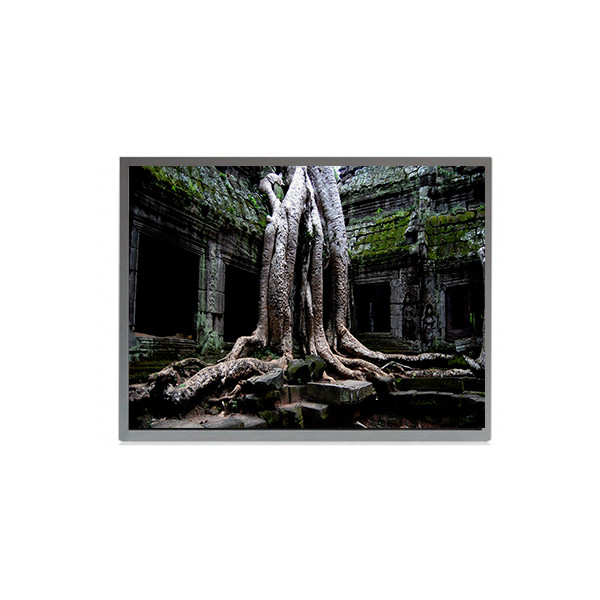

TMS190WX1-50TB 30 Pins 19.0 Inch LCD Screen 1440*900 LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AVIC |
| Model Number: | TMS190WX1-50TB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TMS190WX1-50TB | Screen Size: | 19.0" |
|---|---|---|---|
| Pixel Number: | 1440(RGB)×900, WXGA+ 89PPI | Active Area(mm): | 408.24(W)×255.15(H) Mm |
| Bezel Area(mm): | 412.24(W)×259.14(H) Mm | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Display Colors: | 16.7M 68% NTSC | Used For: | Desktop Monitor |
| Interface Type: | LVDS (2 Ch, 8-bit)30 Pins Connector | Power Supply: | 5.0V (Typ.) |
Product Description
TMS190WX1-50TB 30 Pins 19.0 Inch LCD Screen 1440*900 LCD Panel
TMS190WX1-50TB Product details :
| Brand | AVIC |
| Model P/N | TMS190WX1-50TB |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.24(W)×259.14(H) mm |
| Outline Dim. | 428(W)×278(H)×10.3(D) mm |
| Luminance | 250 cd/m² (Typ.) |
| View Direction | - |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Support Color | 16.7M 68% NTSC |
| Weight | TBD |
| Frame Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [10S4P] , 30K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit)30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
TMS190WX1-50TB Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
TMS190WX1-50TB Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
TMS190WX1-50TB Shipping Information:
We ship to worldwide by DHL,UPS,FEDEX,TNT,EMS ,Normal airmail and agency. It depends on buyer’s requirements.
Delivery Time: We will ship the items within 2 working days after receive the payment.
TMS190WX1-50TB Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
TMS190WX1-50TB FAQ:
Q: What happen if the lcd panel TMS190WX1-50TB I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about TMS190WX1-50TB ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order TMS190WX1-50TB ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order TMS190WX1-50TB ?
A: We accept T/T , PAYPAL , WESTERN UNION .
TMS190WX1-50TB Shippment & Packing
