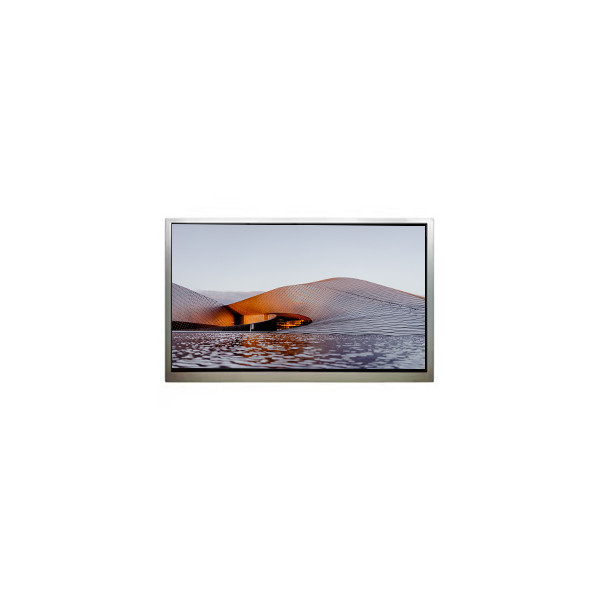

7.0 inches 800*480 lcd screen Display HSD070IDW3-A00-0299
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW3-A00-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070IDW3-A00-0299 | Screen Size: | 7.0" |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480, WVGA 134PPI | Active Area(mm): | 153.6(W)×86.64(H) Mm |
| Outline Dim.: | 162.5(H)×97.89(V)×1.43(D) Mm | Work Mode: | TN, Normally White, Transmissive |
| Color Depth: | 16.7M 50%NTSC | Used For: | Digital Photo Frame、Portable DVD Player |
| Power Supply: | 3.3/10/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
Product Description
7.0 inches 800*480 lcd screen Display HSD070IDW3-A00-0299
HSD070IDW3-A00-0299 Product details :
| Brand | HannStar |
| Model P/N | HSD070IDW3-A00-0299 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | - |
| Outline Dim. | 162.5(H)×97.89(V)×1.43(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 6.27% (Typ.)(with Polarizer) |
| Support Color | 16.7M 50%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Digital Photo Frame,Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 1 source + 1 gate chips |
| Interface Type | Parallel RGB (1 ch, 8-bit), 50 pinsFPC |
| Power Supply | 3.3/10/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
Welcome to consult our staff. We will give you the best service and price. Thank you
We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
If you don't find the part you are looking for, feel free to contact us at any time so we can help you.
HSD070IDW3-A00-0299 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
HSD070IDW3-A00-0299 Shippment & Packing
HSD070IDW3-A00-0299 Shipping Information:
We ship to worldwide by DHL,UPS,FEDEX,TNT,EMS ,Normal airmail and agency. It depends on buyer’s requirements.
Delivery Time: We will ship the items within 2 working days after receive the payment.
HSD070IDW3-A00-0299 Warranty & Return Policy:
We offer 3month warranty for all parts. If meet any quality problems within 3month, please contact us on time, we will solve it immediately .We sincerely look forward to establishing long term business relationship with you in the future. If anything we can do for you, just fell free to contact us at your convenience.
HSD070IDW3-A00-0299 FAQ:
Q: Can you give me a discount if I need a large quantity of HSD070IDW3-A00-0299 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD070IDW3-A00-0299 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of HSD070IDW3-A00-0299 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
