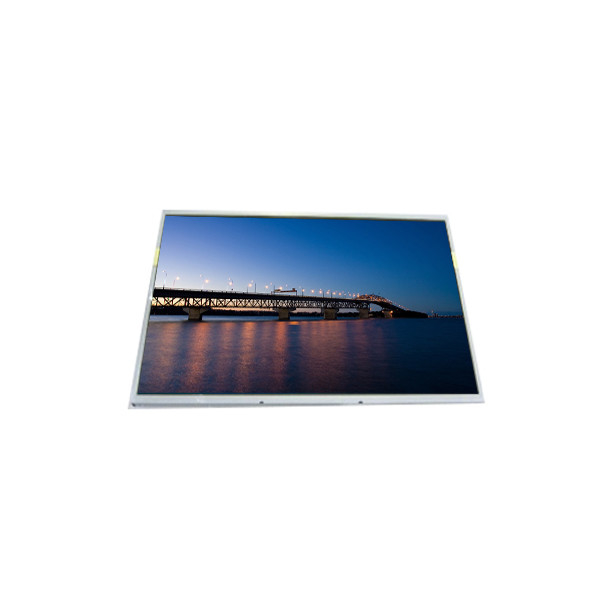

23.0 inches 1920*1080 lcd screen LM230WF3-SLG1 for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF3-SLG1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM230WF3-SLG1 | Screen Size: | 23.0" |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD 95PPI | Active Area(mm): | 509.184(W)×286.416(H) Mm |
| Outline(mm): | 533.2 × 312× 11 (H×V×D) | Bezel Area(mm): | 513.8(W)×291.0(H) Mm |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Used For: | Desktop Monitor |
| Refresh Rate: | 60Hz | Signal Type: | LVDS (2 Ch, 8-bit), 30 Pins Connector |
Product Description
23.0 inches 1920*1080 lcd screen LM230WF3-SLG1 for Desktop Monitor
LM230WF3-SLG1 Product details :
| Brand | LG Display |
| Model P/N | LM230WF3-SLG1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline(mm) | 533.2 × 312× 11 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | 17S2PWLED, 30K hours, No Driver |
| Mass | 2.20/2.31Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LM230WF3-SLG1 Our Services:
1. We will reply your inquiry within 24 hours.
2. We supply all items perfect quality the working & LCD Screen parts.
3. We are hard to find you needed components, always welcome you any inquiry.
Our working times is 9:00am-12:00am ; 1:00pm-6:00pm Beijing time China.
Working time is On Monday - Friday, except holiday. We do work on Saturday & Sunday.
LM230WF3-SLG1 Payment:
We can accept the below payment methods:
1. Paypal
2. Credit card
3. Bank Wire Transfer (T/T)
4. Western Union
5. Alipay
Your local Customs Duty & Tax fees.
if the goods were charged customs duty, we do not responsible for any custom duty or import tax.
LM230WF3-SLG1 Shippment & Packing
LM230WF3-SLG1 SHIPPING:
DHL Express / UPS Express / FedEx Express / TNT Express / EMS Express / ARAMEX Express / SF Express and so on.
If the consignee address is remote area, we only is able to ship via EMS Express, or buyer pay the fees of remotor area. because EMS Express do not charge other fees of remote area.
As a rule, We have the 1 - 3 working day times to handle your order after cleared payments.
Our shipping agent picked up the goods after the tracking Number on website display maybe about 1 - 3 days.
LM230WF3-SLG1 Refunds & Return :
This items comes with 30 days warranty from the shipment date. Items must be tested working before shipments, it will be in good condition.
The items exchange or return must be original as same as shipping before condition.
if there are some defective with the item, Please email us to notify a defective item soon. Unless otherwise specified.
LM230WF3-SLG1 FAQ:
Q: How long will I receive my goods LM230WF3-SLG1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of LM230WF3-SLG1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of LM230WF3-SLG1 ?
A:Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
