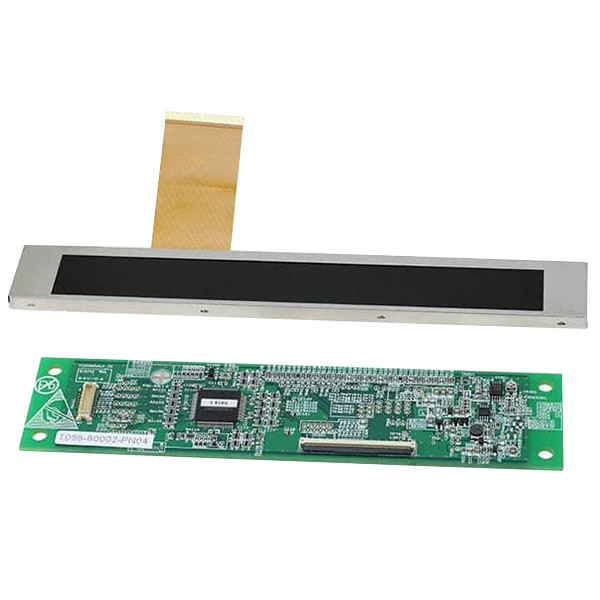

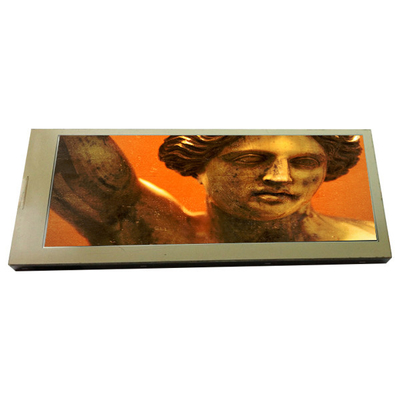

6.5 inch stretched bar lcd Screen Display TCG066AALPAANN-GN00
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | TCG066AALPAANN-GN00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model: | TCG066AALPAANN-GN00 | Diagonal Size: | 6.5 Inch (Native Bar) |
---|---|---|---|
Pixel Format: | 800×92(RGB) 123PPI | Active Area: | 164.4(H)×18.906(V) Mm |
Outline Dim.: | 196.9(H)×27.75(V)mm | Bezel Area: | 167.1(H)×20.65(V) Mm |
Weight: | TBD | Designed For: | Industrial / Stretched Bar LCD |
Product Description
6.5 inch stretched bar lcd Screen Display TCG066AALPAANN-GN00
TCG066AALPAANN-GN00 Product details :
Kyocera LCD SCREEN TCG066AALPAANN-GN00 | |
Panel Brand | Kyocera |
Panel Model | TCG066AALPAANN-GN00 |
Panel Size | 6.5" (Native bar) |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 800×92(RGB), 123PPI |
Pixel Format | RGB Horizontal Stripe |
Display Area | 164.4(W)×18.906(H) mm |
Bezel Opening | 167.1(W)×20.65(H) mm |
Outline Size | 196.9(W)×27.75(H) mm |
Surface | Glare (Haze 0%) |
Brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 8/22 (Typ.)(Tr/Td) |
Display Colors | 262K 75% NTSC |
Lamp Type | WLED , 70K hours , Without Driver |
Touch Screen | Without |
Weight | TBD |
Application | Industrial / Stretched Bar LCD |
Signal Interface | CMOS (1 ch, 6-bit) , 40 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
6.5 inch stretched bar lcd Screen Display TCG066AALPAANN-GN00 |
TCG066AALPAANN-GN00 About Payment Terms:
1. You can pay for your purchase order by PayPal, T/T, Western Union or Cash.
2. The unit price we provided not included any shipping fees or payment charges.
3. We are not responsible for any import fees or customs taxes.
TCG066AALPAANN-GN00 Shippment & Packing
TCG066AALPAANN-GN00 About Shipment Terms:
1. We will pack and send your goods 1-3 working days after we confirmed your payment. For quickly packing and sending, please let us know if you finished the payment.
2. We need your shipping information including your name, address and phone number for shipping your parcel.
3. Tracking number will be shared with you when we got it from the logistics company.
TCG066AALPAANN-GN00 Import Taxes or Duties:
1.- Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are
afforded by buyer.
2.- Please check with you country’s Customs office to determine what these additional costs will be before purchase.
3.- Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill
invoice, or how to describe the item, etc..
TCG066AALPAANN-GN00 Return/Refund Police:
1.We provide different warranty for different products.
2. Please inform us within 7 days if you receive any defective goods from us. The returned items has to be its original condition to qualify for a refund or replacement.
TCG066AALPAANN-GN00 FAQ:
Q: Can You declare my order of TCG066AALPAANN-GN00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of TCG066AALPAANN-GN00 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods TCG066AALPAANN-GN00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
