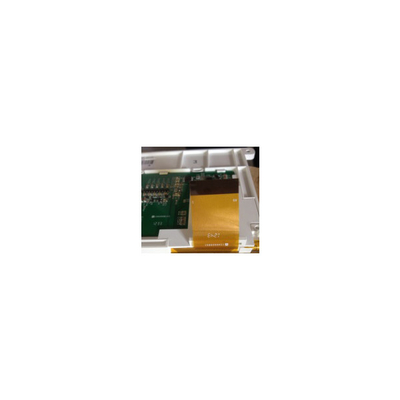

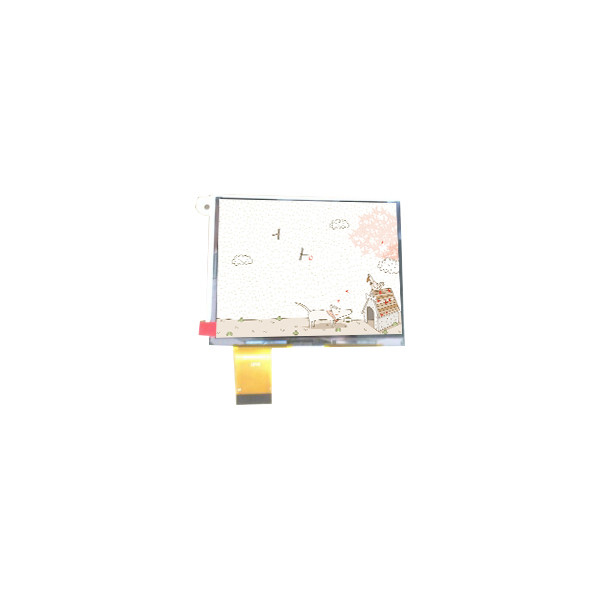

TM050QDH01 40 Pins 5.0 Inch LCD Screen 640*480 LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM050QDH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TM050QDH01 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 160PPI | Display Area: | 101.568(W)×76.176(H) Mm |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) |
| Display Colors: | 262K 50%NTSC | Designed For: | VOIP Phone |
Product Description
TM050QDH01 40 Pins 5.0 Inch LCD Screen 640*480 LCD Panel
TM050QDH01 Product details :
| Brand | TIANMA |
| Model P/N | TM050QDH01 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 160PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 101.568(W)×76.176(H) mm |
| Bezel Opening | - |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | 262K 50%NTSC |
| Lamp Type | 3S5PWLED, 50K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 82.2±0.5g |
| Application | VOIP Phone |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI, 40 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -20 ~ 70 °C |
TM050QDH01 Why directly choose us:
1.All the goods for sale are in stock, we can ship to you within 1-3 working days.
2.Welcome to send us your RFQ or BOM list, we will give you our best price !
3.If our price is higher than your ideal price, please contact us, we can apply for a discount for you and look forward to cooperating with you!
4.If you want to know more about the goods datasheet, please contact us and we will provide it to you ASAP !
TM050QDH01 Payment Information:
T/T (Wire Transfer) / PayPal / western Union / MoneyGram
TM050QDH01 Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send the product within 3 working days after receiving the order.
4. Delivery time will normally be 8 to 50 days, which will be different for different countries. You can choose AliExpress Standard Shipping, it is faster than others.
5. The United States, United Kingdom and Australia can take between 7 and 30 working days.
6. Canada may take 8-35 business days.
7. France / Spain / Germany may take 8-30 business days.
8. Eastern Europe may take 16-30 business days.
9. Italy / Brazil / South America may take 30-50 business days.
10. shipped by DHL Express: 8-12 business days (you need to pay extra fee).
TM050QDH01 FAQ:
Q: How long is the warranty of TM050QDH01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of TM050QDH01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TM050QDH01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods TM050QDH01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
TM050QDH01 Shippment & Packing
