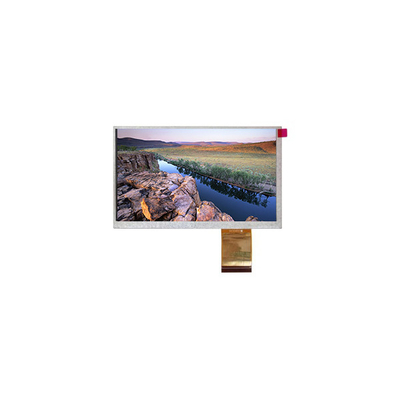

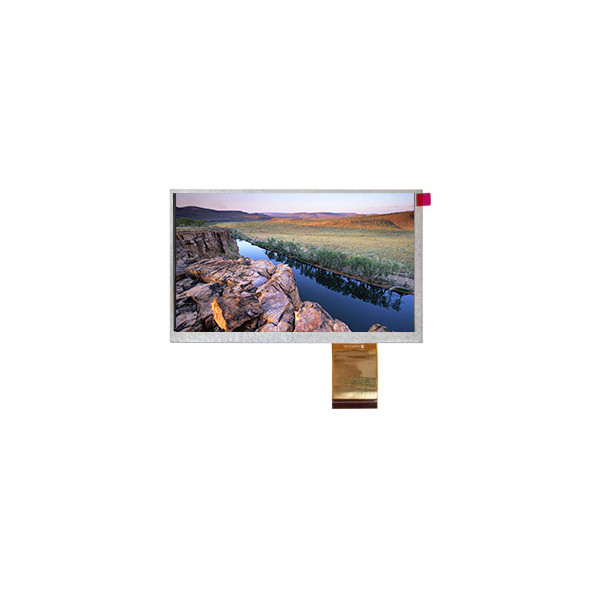

TM080SDH03 50 Pins 8.0 Inch LCD Screen 800*600 LCD Original panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM080SDH03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TM080SDH03 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Type: | A-Si TFT-LCD, LCM | Pixel Format: | 800(RGB)×600, SVGA 125PPI |
| Configuration: | RGB Vertical Stripe | Treatment: | Antiglare |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) | Designed For: | Digital Photo Frame |
| Signal Interface: | Parallel RGB (1 Ch, 6/8-bit), 50 Pins FPC | Input Voltage: | 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
Product Description
TM080SDH03 50 Pins 8.0 Inch LCD Screen 800*600 LCD Original panel
TM080SDH03 Product details :
| Brand | TIANMA |
| Model P/N | TM080SDH03 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 162(W)×121.5(H) mm |
| Bezel Opening | 164.8(W)×124.3(H) mm |
| Outline Size | 183(W)×141(H)×3.8(D) mm |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 50%NTSC |
| Lamp Type | 3S8PWLED, 20K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 190g |
| Application | Digital Photo Frame |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 50 pins FPC |
| Input Voltage | 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
TM080SDH03 Company Tenet:
“With the most affordable price, most efficient service making high quality LCD Screen suppliers.”
Welcome to consult our staff. We will give you the best service and price. Thank you
We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
If you don't find the part you are looking for, feel free to contact us at any time so we can help you.
TM080SDH03 Payment Information:
T/T (Wire Transfer) / PayPal / western Union / MoneyGram
TM080SDH03 Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
TM080SDH03 FAQ:
Q: How long is the warranty of TM080SDH03 ?
A: 90days warranty .
Q: How can I trace my order of TM080SDH03 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods TM080SDH03 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for TM080SDH03 ?
A: Of course!sample order is welcome !
TM080SDH03 Shippment & Packing
