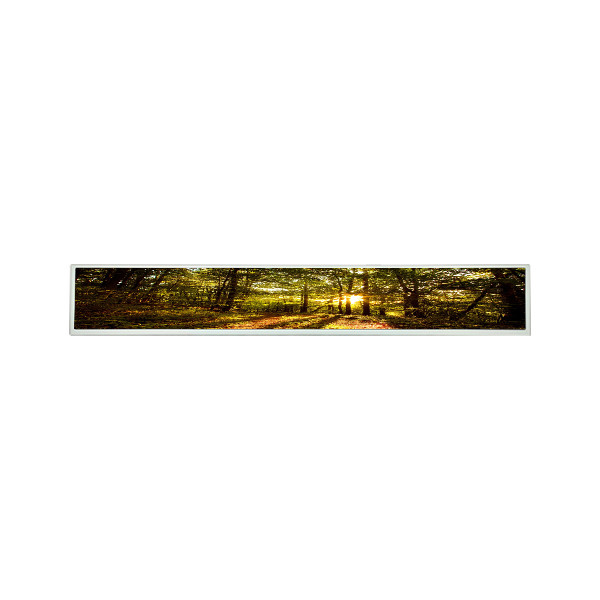

LSI290LN01 29 Inch a-Si TFT-LCD LCM display module
Product Details:
| Place of Origin: | China |
| Brand Name: | SAMSUNG |
| Model Number: | LSI290LN01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LSI290LN01 | Diagonal Size: | 29.0 Inch (Native Bar) |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×540 69PPI | Active Area: | 705.6(H)×198.45(V) Mm |
| Treatment: | Antiglare (Haze 25%) | Support Color: | 16.7M |
| Weight: | TBD | Designed For: | Digital Signage / Stretched Bar LCD |
Product Description
LSI290LN01 29 Inch a-Si TFT-LCD LCM display module
LSI290LN01 Product details :
| SAMSUNG LCD SCREEN LSI290LN01 | |
| Manufacturer | SAMSUNG |
| Model Name | LSI290LN01 |
| Screen Size | 29.0 inch (Native bar) |
| Screen Type | CELL , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×540 69PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 705.6 × 198.45 (H×V) |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 0 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | SPVA, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Digital Signage Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 10-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LSI290LN01 29 Inch a-Si TFT-LCD LCM display module | |
LSI290LN01 Our Advantages:
We have many advantages in distribution packaging: QFP, BGA, QFN, PLCC, SOP, dip, PGA and other new original packaging.
We can provide one-stop BOM quotation, so you can get all the quotations at ease.
Our strength distribution: embedded FPGA, processor chip, memory, industrial level, aerospace level and other high-end integrated circuits.
LSI290LN01 Shippment & Packing
LSI290LN01 PACKAGE:
Standard export carton packing.
LSI290LN01 DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
LSI290LN01 Transportation:
We can ship the items by DHL, Fedex, TNT, UPS, EMS, Aramex and China Mail Post2.For the convenience of customers, we can provide logistics agents to pick up products in the office.
We need 1-3 days to process the goods after the payment arrived3.
We are not responsible for any accidents or delays when goods were picked by logistics company.
The buyers should be responsible for the import fees when goods arrived at the destination.
When receiving the goods, please check whether the package is in good condition as soon as possible. If there is any damage, please contact the carrier, and we will not take any responsibility
LSI290LN01 FAQ:
Q: Can you give me a discount if I need a large quantity of LSI290LN01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LSI290LN01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of LSI290LN01 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
