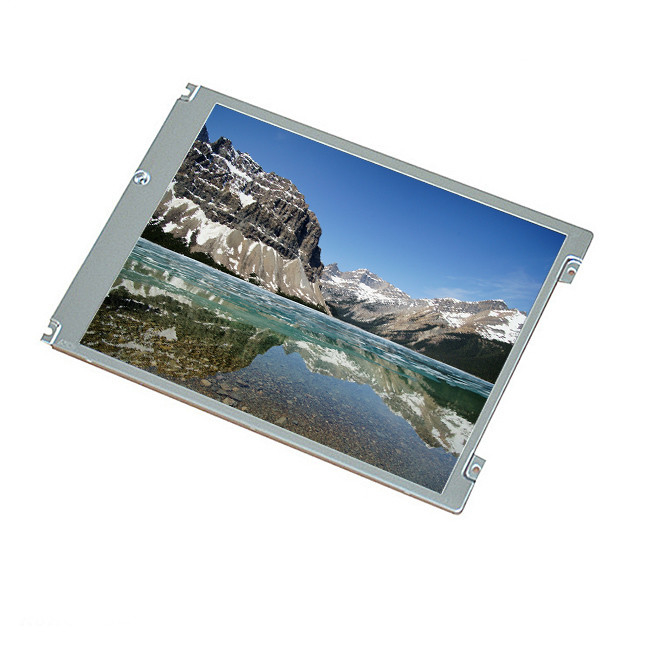

A080XTN01.5 8.0 inch 1024*768 lcd panel lcd screen module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A080XTN01.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A080XTN01.5 | Screen Size: | 8.0 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)*768 [XGA] 160PPI | Active Area(mm): | 162.048 * 121.536 Mm (H*V) |
| Outline(mm): | 183(W)×141(H) Mm | Bezel Area(mm): | 164.65 * 124.14 Mm (H*V) |
| Display Colors: | 262K/16.7M, 50% NTSC | Used For: | Industrial |
Product Description
A080XTN01.5 8.0 inch 1024*768 lcd panel lcd screen module
A080XTN01.5 Product details :
| AUO LCD SCREEN A080XTN01.5 | |
| Manufacturer | AUO |
| Model Name | A080XTN01.5 |
| Diagonal Size | 8.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Number | 1024(RGB)*768 [XGA] 160PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 162.048 * 121.536 mm (H*V) |
| Outline Size | 183(W)×141(H) mm |
| Bezel Opening | 164.65 * 124.14 mm (H*V) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 20/20 (Typ.)(Tr/Td) ms |
| Viewing Angle | 70/70/65/65 (Typ.)(CR≥10) |
| Operating Mode | TN, normally white, transmissive |
| Support Color | 262K/16.7M, 50% NTSC |
| Light Source | 3S9P WLED, 15K hours, Without Driver |
| Weight | 158.5g (Typ.) |
| Designed For | Designed For |
| Frame Rate | 60Hz |
| Touch Screen | Without |
| Application | Industrial |
| Interface Type | LVDS (1 ch, 6/8-bit), FPC, 40 pins |
| Power Supply | 3.3/11.5/20/-7V (Typ.)(VDD/AVDD/VHG/VGL) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| A080XTN01.5 8.0 inch 1024*768 lcd panel lcd screen module | |
A080XTN01.5 Description:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before
shipping and is 100% working;Quality control: All are tested before
delivery,No any Dark Spots,Color Point,Deal Pixels.
5.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
6.Each item has been checked and in good condition before shipping.
7. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
A080XTN01.5 About Shipping:
Please provide the full name of consignee and detailed address for shipping. Full Tested 100% Working By Real equipment before Shipping.
All items will be shipped within 48 business hours upon receipt of payment (except Saturday,Sunday and Statutory holidays).
We are not able to take any responsibility for any custom delay or tax. Import duties, taxes and charges are not included in the item price or shipping charges.
We strive our best to provide you the most reliable, affordable way of shipping service.But sometimes international delivery is highly depended on the courier company and local customs/duties.
If you do not receive your item on time, please contact us immediately for further assistance.
A080XTN01.5 Return & Warranty:
If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
If prove that this product is defective or not working,Please return the product,We will resend a product for you.
The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
A080XTN01.5 FAQ:
Q:If I place order now,when will you ship the goods of A080XTN01.5?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Can you give me a discount if I need a large quantity of A080XTN01.5?
A:Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods A080XTN01.5 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:How to make payment of A080XTN01.5 ?
A:We accept T/T , Paypal , western union .
A080XTN01.5 Shippment
