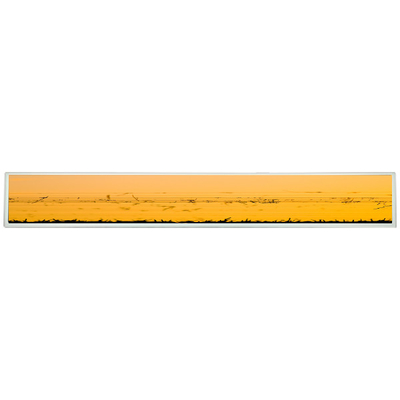

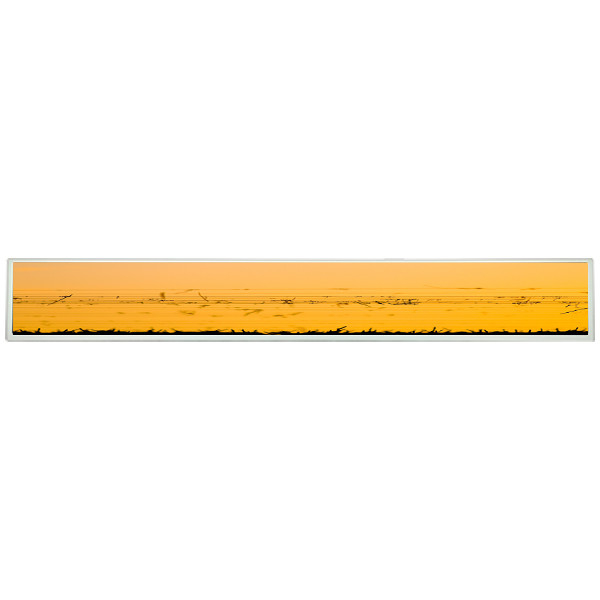

LD880DEN-UKA1 new 88 inch IPS LCD Display Panel 3840×1080
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LD880DEN-UKA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LD880DEN-UKA1 | Diagonal Size: | 88 Inch (Native Bar) |
|---|---|---|---|
| Pixel Format: | 3840(RGB)×1080 45PPI | Active Area: | 2148.48(H)×598.32(V) Mm |
| Outline Dim.: | 2158.3(H)×611.2(V)×84.2(D) Mm | Bezel Area: | 2149.5(H)×599.4(V) Mm |
| Weight: | 24.5Kgs | Designed For: | Digital Signage / Stretched Bar LCD |
Product Description
LD880DEN-UKA1 new 88 inch IPS LCD Display Panel 3840×1080
LD880DEN-UKA1 Product details :
LD880DEN-UKA1 supports display 3840(RGB)×1080 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 2148.48(W)×598.32(H) mm, outline size of 2158.3(W)×611.2(H)×84.2(D) mm, viewing area size of 2149.5(W)×599.4(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), net weight of 24.5Kgs. As a IPS, Normally Black, Transmissive LCM product, LD880DEN-UKA1 can provides 700 cd/m² display brightness 1100:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With LED Driver. LD880DEN-UKA1 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 56 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
| LG Display LCD SCREEN LD880DEN-UKA1 | |
| Manufacturer | LG Display |
| Model Name | LD880DEN-UKA1 |
| Screen Size | 88 inch (Native bar) |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×1080 45PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 2148.48 × 598.32 (H×V) |
| Outline(mm) | 2158.3 × 611.2 × 84.2 (H×V×D) |
| Bezel Area(mm) | 2149.5 × 599.4 (H×V) |
| Treatment | Antiglare (Haze 3%), Hard coating (2H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1100 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 1.07B 98% sRGB |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 24.5Kgs |
| Used for | Digital Signage / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | V-by-One 8 lane , 56 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LD880DEN-UKA1 new 88 inch IPS LCD Display Panel 3840×1080 | |
