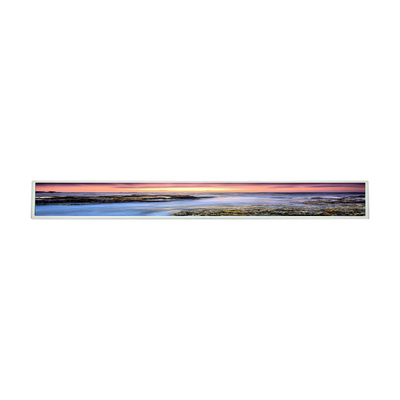

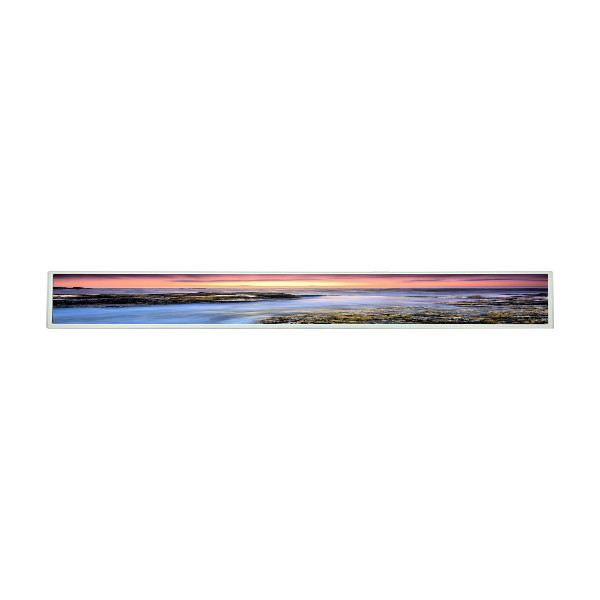

28.6 inch LCD panel For LG LD290EJN-FPN1 LCD screen Floor standing display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LD290EJN-FPN1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD290EJN-FPN1 | Screen Size: | 28.6 Inch (Native Bar) |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×540 69PPI | Active Area(mm): | 698.4 × 196.425 (H×V) |
| Outline(mm): | 712.8 × 213.74 (H×V×D) | Bezel Area(mm): | 700.4 × 198.44 (H×V) |
| Mass: | 1.80/2.00Kgs (Typ./Max.) | Used For: | Digital Signage / Stretched Bar LCD |
Product Description
28.6 inch LCD panel For LG LD290EJN-FPN1 LCD screen Floor standing display panel
LD290EJN-FPN1 Product details :
| LG Display LCD SCREEN LD290EJN-FPN1 | |
| Manufacturer | LG Display |
| Model Name | LD290EJN-FPN1 |
| Screen Size | 28.6 inch (Native bar) |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×540 69PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 698.4 × 196.425 (H×V) |
| Outline(mm) | 712.8 × 213.74 (H×V×D) |
| Bezel Area(mm) | 700.4 × 198.44 (H×V) |
| Treatment | Antiglare, Hard coating (4H) |
| Luminance | 500 (Typ.)(cd/m²) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Response | 6 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 4 strings WLED , 50K hours , No Driver |
| Mass | 1.80/2.00Kgs (Typ./Max.) |
| Used for | Digital Signage / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch |
| Signal Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 28.6 inch LCD panel For LG LD290EJN-FPN1 LCD screen Floor standing display panel | |
LD290EJN-FPN1 Our Services:
Any BGA ,CPU , LCD panels , laptop covers , keyboards , LCD cable ,and repairing tools
Welcome to contact us , we promise all quote for you with real condition make you clear about the condition and make choice .
Every LCD will be tested before shipping , BGA and CPU will be checked carefully before ship for you ,
Welcome to choice us with confidence , You will never worry about the quality problem again
LD290EJN-FPN1 Shippment & Packing
LD290EJN-FPN1 Shipping details:
& we must test the product strictly before shipping in order to ensure that the interests of consumers.
& We will ship the items within 2 working days after receive the payment.
& We can ship to you by DHL/ UPS/EMS/Fedex. Please contact us and we will use your preferred ways.
& we only ship according to the shipping address unless you contact us to change it.
& As to the shipping time,it usually will be 3-15 days,which will be different for different countries.
LD290EJN-FPN1 Warranty and Refund:
1,Each lcd panel will be tested strictly before shipment to make sure 100% working well.
2,Please also test them within 3 business days upon receipt of the parcel.BUT DO NOT INSTALL before testing(only connect LCD to mainboard for testing).
3, We provide 6-month warranty for all products, but the original labels should be kept well.
lf the goods you received is damaged, wrong or defective, please contact us first for a newreplacement or refund.Good communication is the first key to more cooperation.
LD290EJN-FPN1 FAQ:
Q: If I order LD290EJN-FPN1 now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: Do you accept sample orders for LD290EJN-FPN1 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LG Display LD290EJN-FPN1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: What happen if the LD290EJN-FPN1 I receive can't work ?
A: The LG Display LD290EJN-FPN1 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
