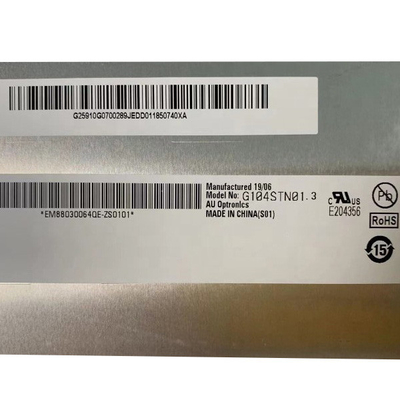

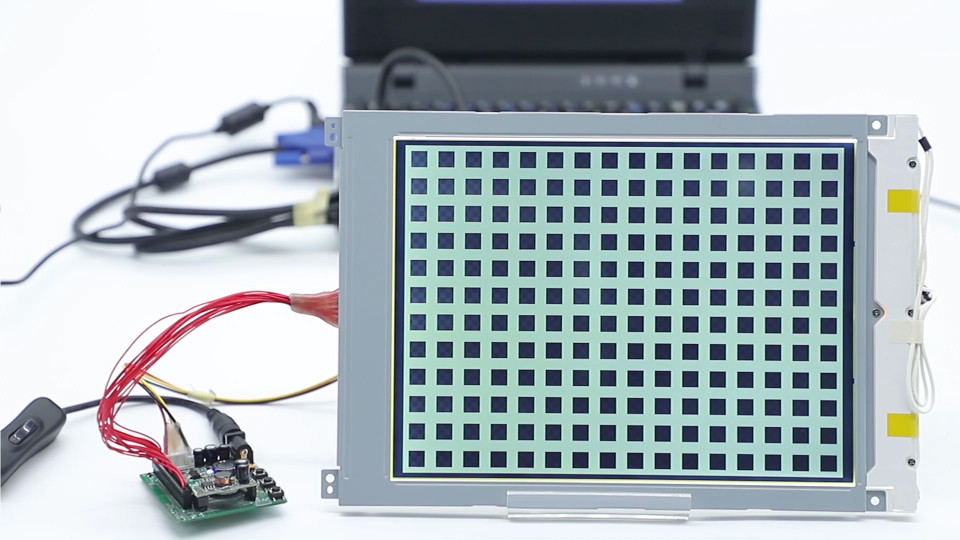

G104STN01.3 10.4 inch display monitors 800*600 TFT-LCD lcd module LVDS
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G104STN01.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G104STN01.3 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600, SVGA, 96PPI | Active Area(mm): | 211.2(W)×158.4(H) Mm |
| Outline(mm): | 227.3(W)×177.5(H)×9.3(D) Mm | Bezel Area(mm): | 215.4(W)×161.9(H) Mm |
| Display Colors: | 262K/16.2M , 50% NTSC | Used For: | Industrial |
Product Description
G104STN01.3 10.4 inch display monitors 800*600 TFT-LCD lcd module LVDS
G104STN01.3 Product details :
| AUO LCD SCREEN G104STN01.3 | |
| Panel Brand | AUO |
| Panel Model | G104STN01.3 |
| Panel Size | 10.4 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.4(W)×161.9(H) mm |
| Outline Size | 227.3(W)×177.5(H)×9.3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/70 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10/5 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.2M , 50% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Designed For | Industrial |
| Panel Weight | 294g (Typ.) |
| Touch Panel | Without |
| Signal Interface | 20 pins LVDS (1 ch, 6/8-bit) , termina |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -30 ~ 80 °C ; Storage temperature: -30 ~ 80 °C |
| G104STN01.3 10.4 inch display monitors 800*600 TFT-LCD lcd module LVDS | |
G104STN01.3 Description:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before
shipping and is 100% working;Quality control: All are tested before
delivery,No any Dark Spots,Color Point,Deal Pixels.
5.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
6.Each item has been checked and in good condition before shipping.
7. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
G104STN01.3 Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
G104STN01.3 FAQ:
Q: Can I pay my order of G104STN01.3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of G104STN01.3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of G104STN01.3 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
G104STN01.3 Shippment
