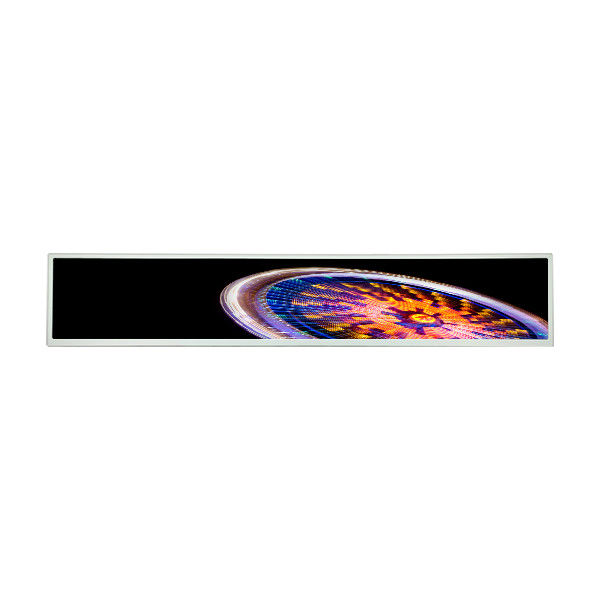

LD230EKN-FPN1 23.1 inch 1920×158 Stretched Bar LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LD230EKN-FPN1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LD230EKN-FPN1 | Panel Size: | 23.1" |
|---|---|---|---|
| Resolution: | 1920(RGB)×158, 83PPI | Display Area: | 585.562(W)×48.187(H) Mm |
| Bezel Opening: | 587.6(W)×50.2(H) Mm | Outline Size: | 593.8(W)×63.4(H)mm |
| Panel Weight: | 0.55/0.75Kgs (Typ./Max.) | Application: | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
Product Description
LD230EKN-FPN1 23.1 inch 1920×158 Stretched Bar LCD Panel
LD230EKN-FPN1 Product details :
| LG Display LCD SCREEN LD230EKN-FPN1 | |
| Manufacturer | LG Display |
| Model Name | LD230EKN-FPN1 |
| Screen Size | 23.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×158 83PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 585.562 × 48.187 (H×V) |
| Outline(mm) | 593.8 × 63.4 (H×V×D) |
| Bezel Area(mm) | 587.6 × 50.2 (H×V) |
| Treatment | Antiglare, Hard coating (4H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 6 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 18S4P WLED , 50K hours , No Driver |
| Mass | 0.55/0.76Kgs (Typ./Max.) |
| Used for | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 57 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LD230EKN-FPN1 23.1 inch 1920×158 Stretched Bar LCD Panel | |
LD230EKN-FPN1 Useful messages:
Welcome to consult our staff. We will give you the best service and price. Thank you
We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
If you don't find the part you are looking for, feel free to contact us at any time so we can help you.
LD230EKN-FPN1 Products and services:
&Our company mainly sales of LCD panel and touch screen,
& We have thousands of models and products.So we are able to meet consumer demand.
& we offer high quality, fast delivery, competitive price for our customers
& Please send your RFQ(request for quoting) to get latest price.
& Warranty of each part.
& Terms of Payment:Paypal,TT,Escrow,Western Union
LD230EKN-FPN1 Shippment & Packing
LD230EKN-FPN1 Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
LD230EKN-FPN1 Warranty:
1.All panel's grade is promised strictly same as original factory's IIS standard
2. All brand-new panel's electronic functions are guarrantted during warranty period of 1 year beginning with the invoice date
3. We can do OEM of the high brightness LCD module as required
During the warranty, if panel's electronic functions problems occur, customers provide the photos to illustrate the panel's problem. once our engineering department has confirmed it is the original factory's electronice problem, we will take back the panels with problem and replace it with new panels. All freight will be taken by us.
LD230EKN-FPN1 FAQ:
Q: Can You declare my order of LD230EKN-FPN1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of LD230EKN-FPN1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LD230EKN-FPN1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LD230EKN-FPN1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
