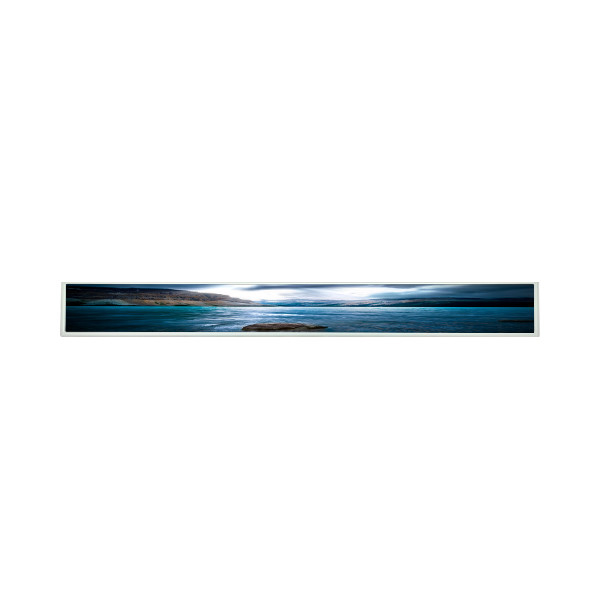

G280HVN01.0 28.0 inch tft lcd display module 1920×360 lcd display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G280HVN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G280HVN01.0 | Diagonal Size: | 28.0 Inch (1/3 Cut Of 32.0") |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×360 69PPI | Active Area: | 698.4(H)×132.3(V) Mm |
| Outline Dim.: | 725.98(H)×158.9(V)×27.63(D) Mm | Bezel Area: | 700.8(H)×134.7(V) Mm |
| Weight: | 1.60Kgs (Max.) | Designed For: | Industrial / Stretched Bar LCD |
Product Description
G280HVN01.0 28.0 inch tft lcd display module 1920×360 lcd display screen
G280HVN01.0 Product details :
| AUO LCD SCREEN G280HVN01.0 | |
| Manufacturer | AUO |
| Model Name | G280HVN01.0 |
| Screen Size | 28.0 inch (1/3 cut of 32.0") |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×360 69PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 698.4 × 132.3 (H×V) |
| Outline(mm) | 725.98 × 158.9 × 27.63 (H×V×D) |
| Bezel Area(mm) | 700.8 × 134.7 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 6.5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | MVA, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 30K hours , With LED Driver |
| Mass | 1.60Kgs (Max.) |
| Used for | Industrial / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| G280HVN01.0 28.0 inch tft lcd display module 1920×360 lcd display screen | |
G280HVN01.0 Our Services
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
G280HVN01.0 We advise our customers:
1)Please contact us for detailed specifications and check them carefully before choosing a LCD module, touch screen or driver board.
2)Please do let us know if quantity and presentation quality are OK within 1 week after signing the goods.
3)Please share information as much as possible when you meet a problem in using our products. That will do us a great favor to find a solution.
4)We are responsible for our LCD parts but joint responsibility is not included.
G280HVN01.0 Shippment & Packing
G280HVN01.0 Package:
Our packaging is all original carton packaging, details are shown above.
The original packaging design is very practical and secure, which greatly avoids the possible damage caused by transportation.
The general packaging quantity is 20/35/40/60pcs per carton, depends on size.
G280HVN01.0 Return/Refund :
1.We provide different warranty for different products.
2. Please inform us within 7 days if you receive any defective goods from us. The returned items has to be its original condition to qualify for a refund or replacement.
G280HVN01.0 Fast and Safe Purchase:
If you want to buy goods quickly, we can do Trade Assurance Order with you. It will keep your payment safe.
G280HVN01.0 FAQ:
Q: Can You declare my order of G280HVN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of G280HVN01.0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of G280HVN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of G280HVN01.0 ?
A: Of course!sample order is welcome !
