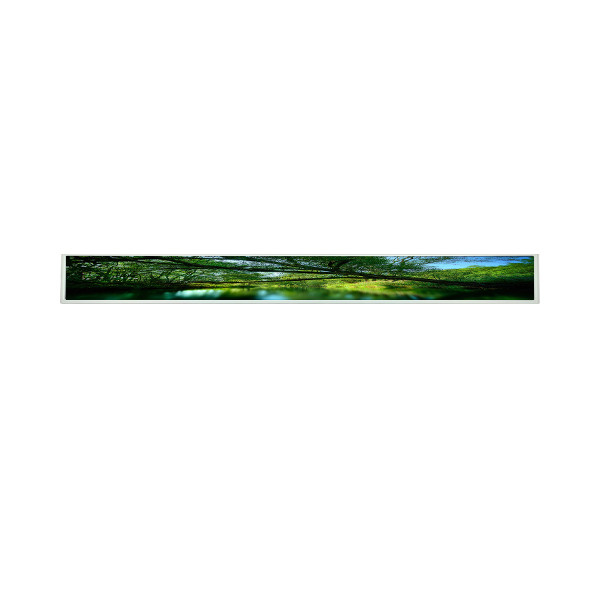

G229HAF02.0 22.9 inch 1920×165 Stretched Bar LCD Panel for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G229HAF02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G229HAF02.0 | Diagonal Size: | 22.9 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×165 84PPI | Active Area: | 578.88(H)×49.7475(V) Mm |
| Outline Dim.: | 587.08(H)×62.05(V)×17(D) Mm | Response Time: | 13/12 (Typ.)(Tr/Td) |
| Weight: | 700g (Typ.) | Designed For: | Industrial / Outdoor High Brightness / Stretched Bar LCD |
Product Description
G229HAF02.0 22.9 inch 1920×165 Stretched Bar LCD Panel for AUO
G229HAF02.0 Product details :
| AUO LCD SCREEN G229HAF02.0 | |
| Manufacturer | AUO |
| Model Name | G229HAF02.0 |
| Screen Size | 22.9 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×165 84PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 578.88 × 49.7475 (H×V) |
| Outline(mm) | 587.08 × 62.05 × 17 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 13/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 50K hours |
| Mass | 700g (Typ.) |
| Used for | Industrial / Outdoor High Brightness / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | HDMI |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| G229HAF02.0 22.9 inch 1920×165 Stretched Bar LCD Panel for AUO | |
G229HAF02.0 Payment:
We accept T/T (Bank Transfer), Western Union, Paypal,Credit card, Visa, Escrow
We offer flexible payment terms including COD(NET) terms to good customers.
G229HAF02.0 Shippment & Packing
G229HAF02.0 PACKAGE:
Standard export carton packing.
G229HAF02.0 Shipment:
1.The goods will be shipped within 1-2 working days after payment is received.
2. The goods can be shipped by DHL, FedEx, UPS,EMS ,TNT, DPEX, ARAMEX, Registered post, Air or your shipping agent. Please choose the shipment method you prefer.
3. The buyer is responsibel for any tax or duty charged by their country.
G229HAF02.0 DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
G229HAF02.0 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
G229HAF02.0 FAQ:
Q: How can I trace my order of G229HAF02.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of G229HAF02.0 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of G229HAF02.0 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of G229HAF02.0 ?
A: Of course!If you make a large order, we will give you a discount.
