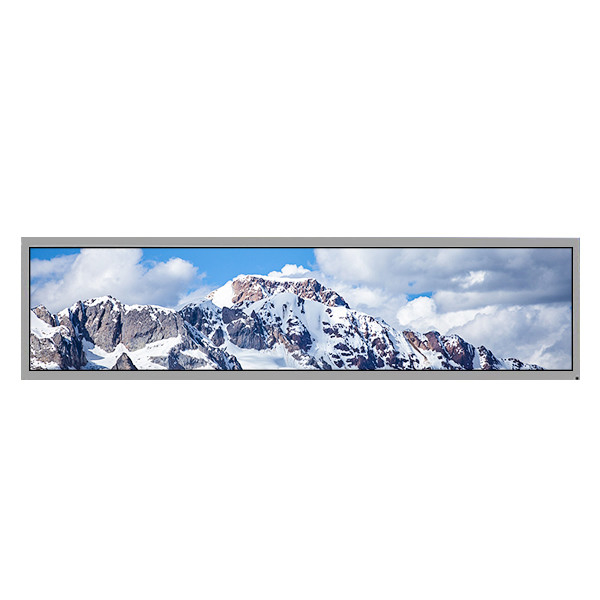

19.0 inch 1680×342 LCD Display Module G190SF01 V0 for Stretched Bar LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G190SF01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G190SF01 V0 | Panel Size: | 19.0" (1/3 Cut Of 22.0") |
|---|---|---|---|
| Resolution: | 1680(RGB)×342, 90PPI | Display Area: | 473.76(W)×96.44(H) Mm |
| Bezel Opening: | 477.7(W)×100.44(H) Mm | Outline Size: | 493.7(W)×124.8(H)×18.5(D) Mm |
| Panel Weight: | 1.50Kgs (Typ.) | Application: | Industrial / Stretched Bar LCD |
Product Description
19.0 inch 1680×342 LCD Display Module G190SF01 V0 for Stretched Bar LCD Panel
G190SF01 V0 Product details :
| AUO LCD SCREEN G190SF01 V0 | |
| Panel Brand | AUO |
| Panel Model | G190SF01 V0 |
| Panel Size | 19.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×342 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 473.76 × 96.44 mm (H×V) |
| Bezel Opening | 477.7 × 100.44 mm (H×V) |
| Outline Size | 493.7 × 124.8 × 18.5 mm (H×V×D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 300 (Typ.) |
| Contrast Ratio | 2000 : 1 (Typ.) [Transmission] |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | P-MVA, Normally Black, Transmissive |
| Response Time | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | 8S5P WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 1.50Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , terminal, 30 pins |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| 19.0 inch 1680×342 LCD Display Module G190SF01 V0 for Stretched Bar LCD Panel | |
G190SF01 V0 Our Advantage:
1. High quality
2. Competitive price
3.Secure payment
4. Fast delivery
5. Excellent service
6. More than 10 year experience
If you have any inquiry, feel free to contact us.
G190SF01 V0 Our Services:
We supply A grade new original InnoLux and AUO LCD panels.
Matching touch screens and driver boards are also available.
G190SF01 V0 We advise our customers:
1)Please contact us for detailed specifications and check them carefully before choosing a LCD module, touch screen or driver board.
2)Please do let us know if quantity and presentation quality are OK within 1 week after signing the goods.
3)Please share information as much as possible when you meet a problem in using our products. That will do us a great favor to find a solution.
4)We are responsible for our LCD parts but joint responsibility is not included.
G190SF01 V0 Shippment & Packing
G190SF01 V0 Packing:
1. new in retail box or packed as bulk one per you required
2. pack materials with outer carton box and put on your shipping mark before shipping
3. professrional packing make sure shock-proof and safe arrival.
G190SF01 V0 SHIPPING:

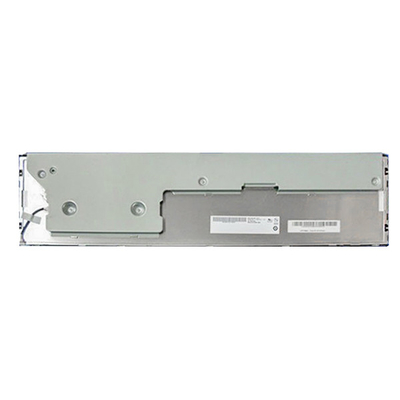

Shipping Label on the rear side of TFT-LCD display
Carton Package,originally from AUO
Shipping process: Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
G190SF01 V0 FAQ:
Q: If I order AUO G190SF01 V0 now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: What happen if the G190SF01 V0 I receive can't work ?
A: The G190SF01 V0 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you give me a discount if I need a large quantity of G190SF01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods of AUO G190SF01 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
