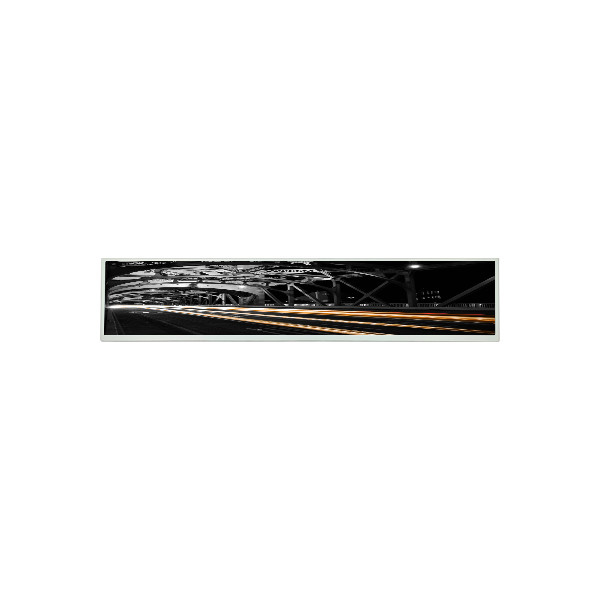

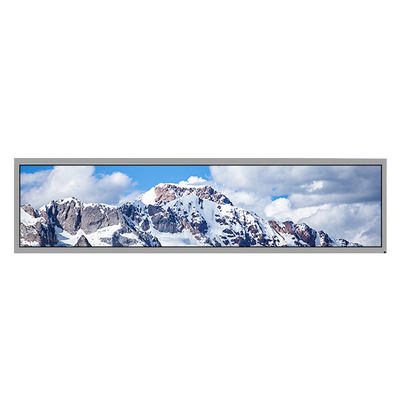

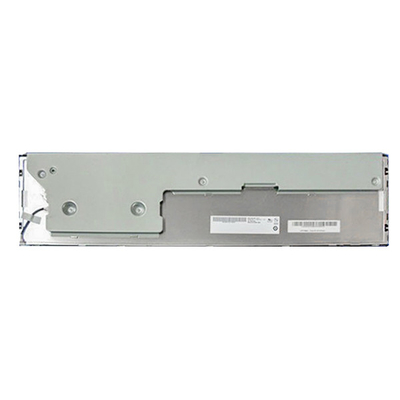

E076AWW1 R0 7.6 inch 1280×240 LCD screen display for IVO
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | E076AWW1 R0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | E076AWW1 R0 | Diagonal Size: | 7.6 Inch |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×240 169PPI | Active Area: | 191.616(H)×35.928(V) Mm |
| Outline Dim.: | 200.508(H)×43.928(V)×1.28(D) Mm | Plate Thickness: | 0.50+0.50 Mm |
| Weight: | 30.0g (Max.) | Designed For: | Stretched Bar LCD / Automotive Display |
Product Description
E076AWW1 R0 7.6 inch 1280×240 LCD screen display for IVO
E076AWW1 R0 Product details :
| IVO LCD SCREEN E076AWW1 R0 | |
| Manufacturer | IVO |
| Model Name | E076AWW1 R0 |
| Screen Size | 7.6 inch |
| Screen Type | CELL , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×240 169PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 191.616 × 35.928 (H×V) |
| Outline(mm) | 200.508 × 43.928 × 1.28 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.1% (Typ.) |
| Color Depth | 16.7M 50% NTSC |
| Backlight | No B/L |
| Mass | 30.0g (Max.) |
| Used for | Stretched Bar LCD / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C |
| E076AWW1 R0 7.6 inch 1280×240 LCD screen display for IVO | |
Welcome to consult our staff. We will give you the best service and price. Thank you
We are an independent distributor of electronic components and industrial control parts. We are a customer oriented company and provide high quality and performance parts.
Our main products , IC, IGBT, IPM, SCR, GTO,thyristor, diode, rectifier bridge, mosfet, fuse, power supply, capacitor, relay,sensors switch, inverter, PLC, LCD, Breakers, Automation equipment, PLC, Servo, Driver etc.
E076AWW1 R0 Payment Opinions:
1. T/T (Wire Transfer)
2 WESTERN UNION
3.Paypal
4.Alipay
5.Wechat pay
E076AWW1 R0 Shippment & Packing
E076AWW1 R0 SHIPPING:
1 We will ship the items within 3working days after the payment is reached.
2 We often ship to customers by UPS/DHL/Fedex and ect,We would like to ship to you which is convenient to you. Please contact us directly and we will use your preferred ways.
3 We are not responsible for any accidents, delays or other issues that we couldn’t control, But we will contact the shipping company which is our long term cooperation.
4 Any import fees or charges are the buy’s responsibility.
E076AWW1 R0 Buyer Reading:
1.Please confirm receipt of products if the items you received, and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution.
2.We only guarantee delivery in time but we couldn't control the epress delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the net workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the epress company in your company.
E076AWW1 R0 FAQ:
Q: Can you give me a discount if I need a large quantity of E076AWW1 R0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of E076AWW1 R0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of E076AWW1 R0 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
