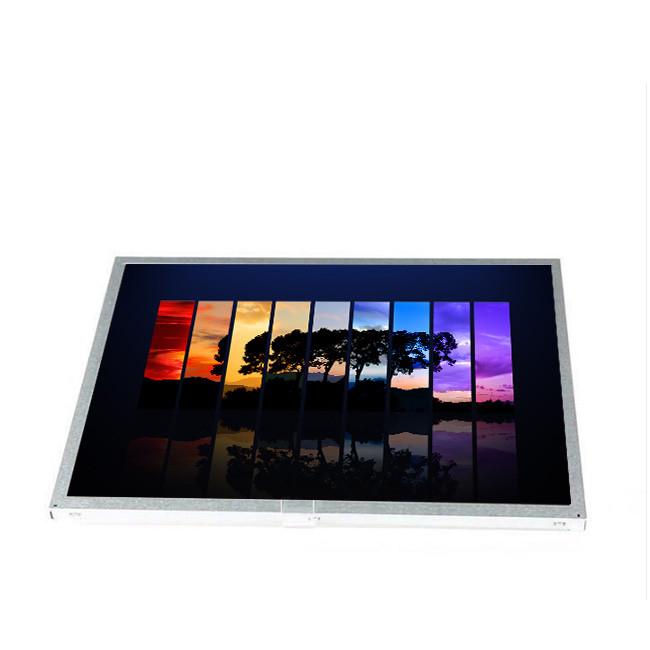

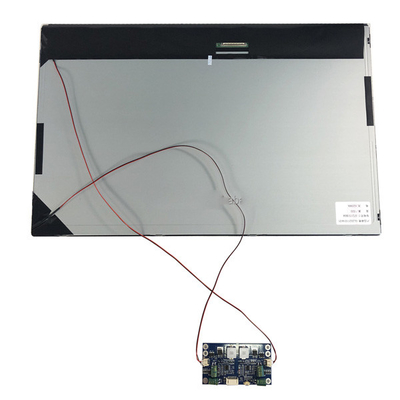

G150XAN02.0 Industrial AUO 15 inch 1024x768 IPS TFT LCD Panel with 500 nits and 20 pin LVDS cables
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XAN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XAN02.0 | Screen Size: | 15.0 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Outline(mm): | 326.5(W)×253.5(H)×9(D) Mm | Contrast Ratio: | 1000:1 (Typ.) (Transmission) |
| Display Colors: | 16.2M , 60% NTSC | Used For: | Industrial |
Product Description
G150XAN02.0 Industrial AUO 15 inch 1024x768 IPS TFT LCD Panel
G150XAN02.0 Product details :
| AUO LCD SCREEN G150XAN02.0 | |
| Panel Brand | AUO |
| Panel Model | G150XAN02.0 |
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 309.9(W)×236.36(H) mm |
| Outline Size | 326.5(W)×253.5(H)×9(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.2M , 60% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Designed For | Industrial |
| Panel Weight | 920g (Max.) |
| Touch Panel | Without |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -20 ~ 70 °C ; Storage: -20 ~ 70 °C |
| G150XAN02.0 Industrial AUO 15 inch 1024x768 IPS TFT LCD Panel with 500 nits and 20 pin LVDS cables | |
G150XAN02.0 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
G150XAN02.0 Logistics:
1. Worldwide shipping.
2. Orders will be delivered in 3 working days after receiving full payment.
3. Major express partners: DHL, Fedex, TNT, EMS, Aramex.
4. We are not responsible for any customs duties and additional taxes.
G150XAN02.0 Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send the product within 3 working days after receiving the order.
4. Delivery time will normally be 8 to 50 days, which will be different for different countries. You can choose AliExpress Standard Shipping, it is faster than others.
5. * The United States, United Kingdom and Australia can take between 7 and 30 working days.
6. * Canada may take 8-35 business days.
7. * France / Spain / Germany may take 8-30 business days.
8. * Eastern Europe may take 16-30 business days.
9. * Italy / Brazil / South America may take 30-50 business days.
10. * shipped by DHL Express: 8-12 business days (you need to pay extra fee).
G150XAN02.0 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
G150XAN02.0 FAQ:
Q: How to make payment of G150XAN02.0 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of G150XAN02.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of G150XAN02.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of G150XAN02.0 ?
A: The order will be shipped within 2-3 working days after received your payment.
G150XAN02.0 Shippment & Packing
