G121STN02.0 industrial pc monitor screen AUO TN 12.1 inch lcd monitor panel 800*600 resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G121STN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G121STN02.0 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600, SVGA, 82PPI | Display Area: | 246(W)×184.5(H) Mm |
| Outline(mm): | 260.5(W)×203(H)×9(D) Mm | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Display Colors: | 262K/16.2M , 53% NTSC | Used For: | Industrial |
Product Description

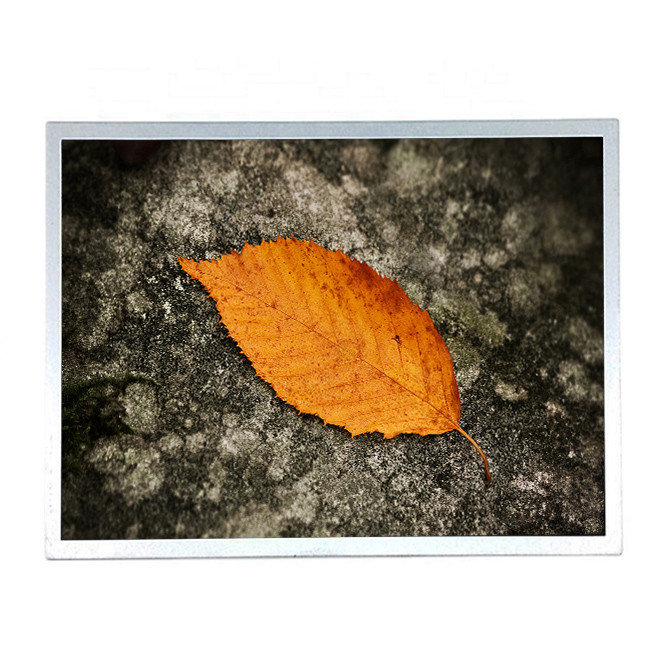

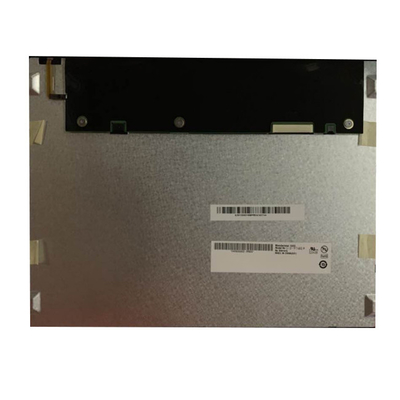

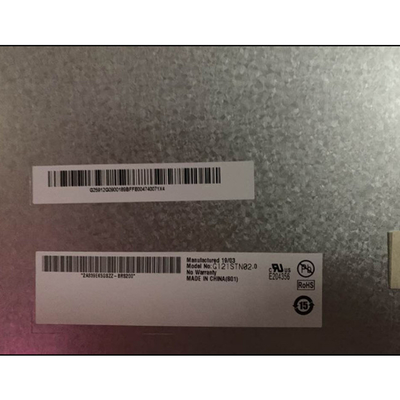

G121STN02.0 AUO TN 12.1 inch lcd monitor panel 800*600 resolution
G121STN02.0 Product details :
| AUO LCD SCREEN G121STN02.0 | |
| Panel Brand | AUO |
| Panel Model | G121STN02.0 |
| Panel Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249(W)×187.5(H) mm |
| Outline Size | 260.5(W)×203(H)×9(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/65/75 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 25/10 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.2M , 53% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 600g (Max.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -30 ~ 85 °C ; Storage: -30 ~ 85 °C |
| G121STN02.0 industrial pc monitor screen AUO TN 12.1 inch lcd monitor panel 800*600 resolution | |
G121SN01 V1 About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
G121SN01 V1 Logistics:
1. Worldwide shipping.
2. Orders will be delivered in 3 working days after receiving full payment.
3. Major express partners: DHL, Fedex, TNT, EMS, Aramex.
4. We are not responsible for any customs duties and additional taxes.
G121STN02.0 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
G121STN02.0 FAQ:
Q: When will my order 12.1 inch lcd panel G121STN02.0 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 12.1 inch lcd panel G121STN02.0 before shipping?
A: Don't Worry , The G121STN02.0 was tested ok before shipping.
Q: What happen if G121STN02.0 I received can't work ?
A: The G121STN02.0 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
