BOE 48 inch DV480FBM-N00 3840×720 stretched bar lcd panel module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV480FBM-N00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | DV480FBM-N00 | Diagonal Size: | 48 Inch (Native Bar) |
|---|---|---|---|
| Pixel Format: | 3840(RGB)×720 81PPI | Active Area: | 1194.05(H)×223.884(V) Mm |
| Outline Dim.: | 1217.9(H)×248.2(V)×30.58(D) Mm | Response Time: | 16 (Typ.)(Tr+Td) |
| Weight: | 3.7Kgs (Typ.) | Designed For: | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
Product Description

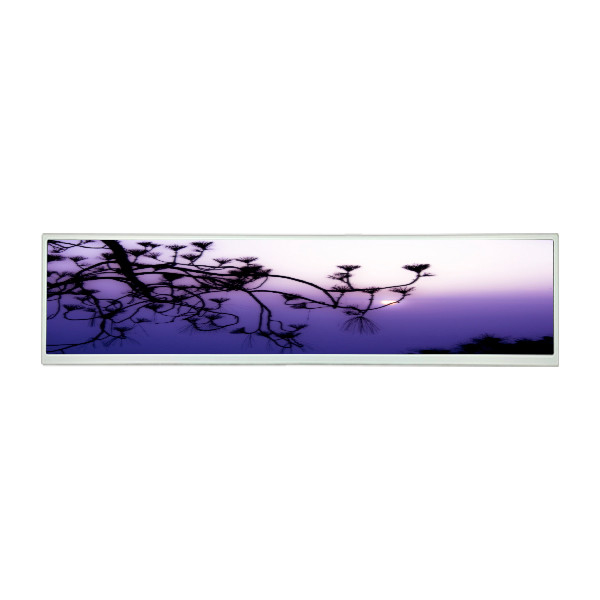

BOE 48 inch DV480FBM-N00 3840×720 stretched bar lcd panel module
DV480FBM-N00 Product details :
| BOE LCD SCREEN DV480FBM-N00 | |
| Manufacturer | BOE |
| Model Name | DV480FBM-N00 |
| Screen Size | 48 inch (Native bar) |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×720 81PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 1194.05 × 223.884 (H×V) |
| Outline(mm) | 1217.9 × 248.2 × 30.58 (H×V×D) |
| Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 3.7Kgs (Typ.) |
| Used for | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | V-by-One 8 lane , Connector 51 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE 48 inch DV480FBM-N00 3840×720 stretched bar lcd panel module | |
DV480FBM-N00 Why choose us:
1. professional Parts LCD Screen, with 10 years of working experience
2. a large number of high-quality spot Parts inventory, rigorous work team, to ensure timely delivery
3. strict quality control, each product must follow strict quality standards, repeated testing, to ensure that the product can be used normally
4. Supply a complete set of LCD Screen
5. Perfect after-sales service system; quickly provide customers with high quality solutions
6. Under the premise of the safety of goods transport, as far as possible to reduce the volume and weight of packaging,Reduce the operating costs of customers to the maximum extent
DV480FBM-N00 Shippment & Packing
DV480FBM-N00 Shipment:
1.DHL/EMS/UPS/FEDEX
2.The buyer is responsible for any tax or duty charged by their country.
DV480FBM-N00 Return Policy:
1.Please contact us within 7 days if you have any question after you receiving the items.
2.The returned items has to be in its original condition and you must provide us with the shipping tracking number,specific reason for the return,We will issue a return or replacement for your oder after we received the returns.
DV480FBM-N00 Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
DV480FBM-N00 FAQ:
Q: How can I trace my order of DV480FBM-N00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of DV480FBM-N00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of DV480FBM-N00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods DV480FBM-N00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
