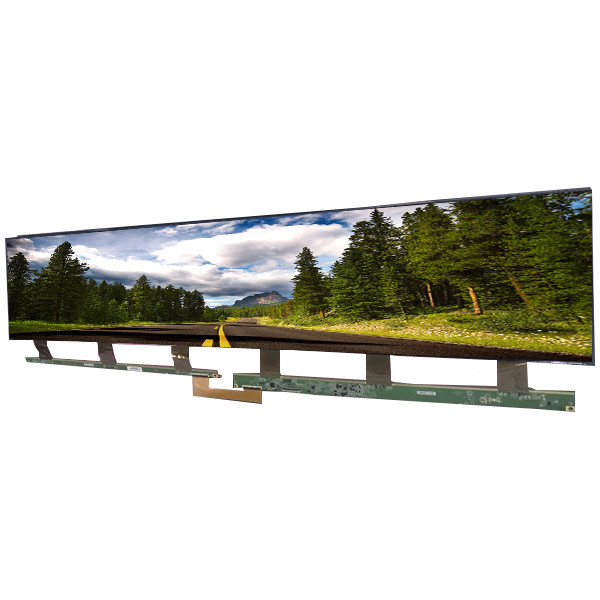

BOE 47.6 inch DV476FKB-NV0 bar display tft lcd 1920*360 stretched bar lcd panel module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV476FKB-NV0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | DV476FKB-NV0 | Diagonal Size: | 47.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×360 41PPI | Active Area: | 1189.44(H)×223.02(V) Mm |
| Outline Dim.: | 1195.44(H)×235.72(V)mm | Operating Mode: | ADS, Normally Black, Transmissive |
| D-IC Detail: | COF Built-in 6 Source Chips | Designed For: | Digital Signage / Stretched Bar LCD |
Product Description
BOE 47.6 inch DV476FKB-NV0 bar display tft lcd 1920*360 stretched bar lcd panel module
DV476FKB-NV0 Product details :
| BOE LCD SCREEN DV476FKB-NV0 | |
| Manufacturer | BOE |
| Model Name | DV476FKB-NV0 |
| Screen Size | 48 inch |
| Screen Type | CELL, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×360 41PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 1189.44 × 223.02 (H×V) |
| Outline(mm) | 1195.44 × 235.72 (H×V×D) |
| Treatment | Antiglare (Haze 1%) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 9 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Transmissivity | 5.35% (Typ.) |
| Color Depth | 16.7M 69% NTSC |
| Backlight | No B/L |
| Used for | Digital Signage Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 6 source chips |
| Signal Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE 47.6 inch DV476FKB-NV0 bar display tft lcd 1920*360 stretched bar lcd panel module | |
