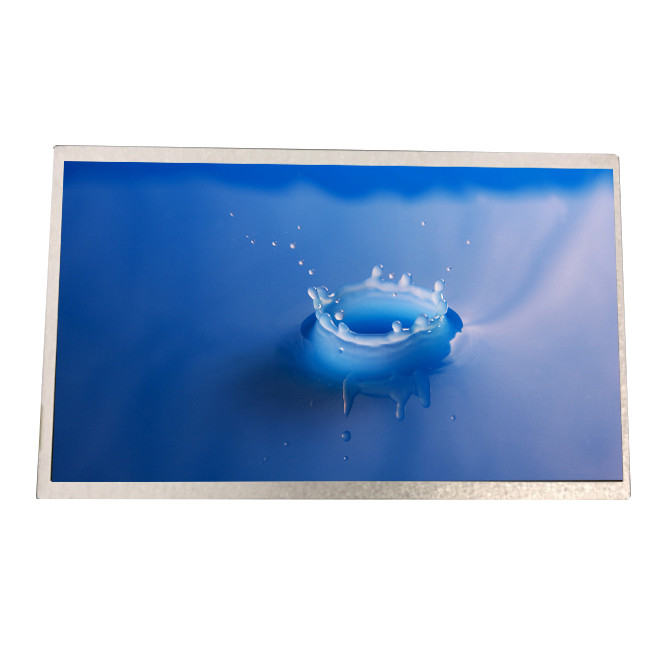

G101STN01.G 10.1 inch lcd panel 1024*600 lcd display screen TFT-LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G101STN01.G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G101STN01.G | Panel Size: | 10.1 Inches |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA, 117PPI | Display Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 226.34(W)×128.10(H) Mm | Outline Size: | 235(W)×143(H)×5.2(D) Mm |
| Display Colors: | 262K/16.7M , 45% NTSC | Application: | Industrial |
Product Description
G101STN01.G 10.1 inch lcd panel 1024*600 lcd display screen TFT-LCD
G101STN01.G Product details :
| AUO LCD SCREEN G101STN01.G | |
| Panel Brand | AUO |
| Panel Model | G101STN01.G |
| Panel Size | 10.1 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×600, WSVGA, 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 226.34(W)×128.10(H) mm |
| Outline Size | 235(W)×143(H)×5.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/9 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Designed For | Industrial |
| Frequency | 60Hz |
| Designed For | Industrial |
| Panel Weight | 180g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| G101STN01.G 10.1 inch lcd panel 1024*600 lcd display screen TFT-LCD | |
G101STN01.G Dear customers:
Welcome to our YONGS Official Store .It's our honor to have this opportunity for providing services for you.
All of our products are in original high quality,they are new .
Please feel free to contact us no matter what product you want to buy.
If there is anything we can help you when you shopping in our store,
please contact us.
We will offer you the best service and happy shopping experience.
Hope we can have a good start cooperation.Thank you!
Best wishes
Yours
All members of YONGS Official Store
G101STN01.G Payment:
1:We receive papay payments. please make sure your address OK.
2: Payment must be made within 48 hours of the auction end time.
3: Non-Paying bidders will be reported.
G101STN01.G Note:
1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!
2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!
3: After receiving the product, if there is a problem, please contact customer service to solve it!
G101STN01.G Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
G101STN01.G FAQ:
Q: How to order AUO G101STN01.G ?
A: We accept the T/T , Western union , paypal .
Q: Can you declared low value for my order TFT-LCD G101STN01.G when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the LCD Screen G101STN01.G I received can't work ?
A: Our AUO G101STN01.G was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: can you declared low price of my AUO lcd panel G101STN01.G when shipping?
A: Yes , please inform us the value you want .
