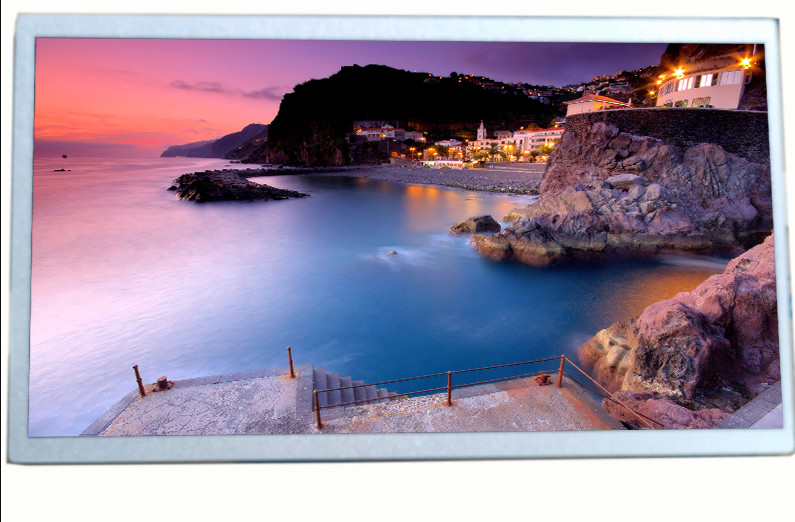

G101STN01.D AUO 10.1 inch TFT LCD Display Panel with 1024x600 and 40 pins LVDS interface
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G101STN01.D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G101STN01.D | Panel Size: | 10.1 Inches |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA, 117PPI | Display Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 226.34(W)×128.10(H) Mm | Outline Size: | 235(W)×143(H)×5.2(D) Mm |
| Display Colors: | 262K/16.7M , 45% NTSC | Application: | Industrial |
Product Description
G101STN01.D AUO 10.1 inch TFT LCD Display Panel with 1024x600 and 40 pins LVDS interface
G101STN01.D Product details :
| AUO LCD SCREEN G101STN01.D | |
| Panel Brand | AUO |
| Panel Model | G101STN01.D |
| Panel Size | 10.1 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×600, WSVGA, 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 226.34(W)×128.10(H) mm |
| Outline Size | 235(W)×143(H)×5.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/9 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M , 45% NTSC |
| Lamp Type | WLED , 50K hours, with LED drive |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 180g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| G101STN01.D AUO 10.1 inch TFT LCD Display Panel with 1024x600 and 40 pins LVDS interface | |
G101STN01.D Dear customers:
Welcome to our YONGS Official Store .It's our honor to have this opportunity for providing services for you.
All of our products are in original high quality,they are new .
Please feel free to contact us no matter what product you want to buy.
If there is anything we can help you when you shopping in our store,
please contact us.
We will offer you the best service and happy shopping experience.
Hope we can have a good start cooperation.Thank you!
Best wishes
Yours
All members of YONGS Official Store
G101STN01.D Payment:
1:We receive papay payments. please make sure your address OK.
2: Payment must be made within 48 hours of the auction end time.
3: Non-Paying bidders will be reported.
G101STN01.D NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
3.The LCD model name in your hand, such as: LM140LF1L02
4.Your notebook computer name, such as: brand,specific model
5.Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
G101STN01.D Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
G101STN01.D FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How can I trace my order of G101STN01.D ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of G101STN01.D ?
A: Of course!sample order is welcome !
Q: Can I pay my order of G101STN01.D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
G101STN01.D Shippment & Packing
