Stretched Bar LCD

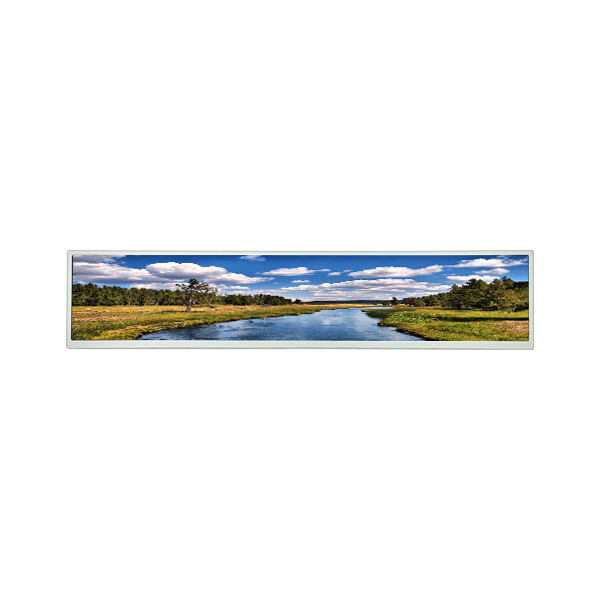

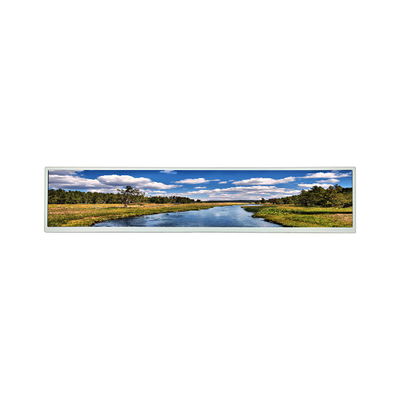

DV231FBQ-NV0 23.1 inch lcd display screen panel for Stretched Bar LCD

All Category

Floor Standing Digital Signage

DV231FBQ-NV0 23.1 inch lcd display screen panel for Stretched Bar LCD

Brand Name:	BOE
Model Number:	DV231FBQ-NV0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

DV231FBQ-NV0

Panel Size:

23.1"

Resolution:

1920×158(RGB), 83PPI

Display Area:

585.216(W)×48.1584(H) Mm

Outline Size:

593.82(W)×56.59(H)×1(D) Mm

Glass Depth:

0.50+0.50 Mm

Transmissivity:

4.0% (Typ.)

Application:

Stretched Bar LCD / Digital Signage

Supply Ability:

100000 Unit/Units per Month

Product Description

DV231FBQ-NV0 23.1 inch lcd display screen panel for Stretched Bar LCD

DV231FBQ-NV0 Product details :

BOE LCD SCREEN DV231FBQ-NV0
Manufacturer	BOE
Model Name	DV231FBQ-NV0
Screen Size	23.1 inch
Screen Type	CELL , a-Si TFT-LCD
Pixel Number	1920×158(RGB) 83PPI
Arrangement	RGB Horizontal Stripe
Active Area(mm)	585.216 × 48.1584 (H×V)
Outline(mm)	593.82 × 56.59 × 1 (H×V×D)
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	15 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	4.0% (Typ.)
Color Depth	16.7M
Backlight	No B/L
Used for	Digital Signage / Stretched Bar LCD
Touchscreen	Without
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: -5 ~ 50 °C
DV231FBQ-NV0 23.1 inch lcd display screen panel for Stretched Bar LCD

DV231FBQ-NV0 Our advantages:

1: We are all own stock, with adequate supply

2: The quality of the product reached a series of certification

3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.

I firmly believe

We will be your best partner

DV231FBQ-NV0 Shippment & Packing

DV231FBQ-NV0 23.1 inch lcd display screen panel for Stretched Bar LCD 0

DV231FBQ-NV0 About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

DV231FBQ-NV0 Delivery time:

Sample order about 3-5 working days, bulk order about 7-15 working days.

Normally, we ship goods by sea,air and express.

. By sea to your nearest sea port for 10~15 days

. By air to your nearest air port for 5~10 days

. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days

DV231FBQ-NV0 FAQ:

Q: Can You declare my order of DV231FBQ-NV0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How to make payment of DV231FBQ-NV0 ?

A: We accept T/T , Paypal , western union .

Q: How can I trace my order of DV231FBQ-NV0 ?

A: we will give you tracking number then you can trace your order from website.
