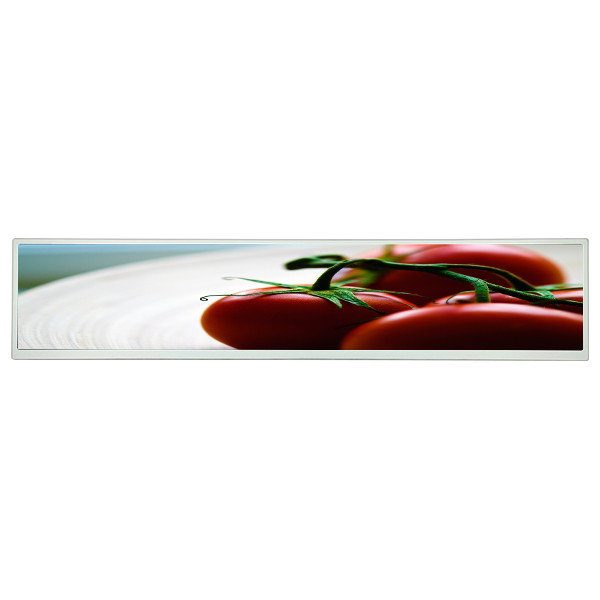

CLAB276FP0A XN 27.6 inch LCD Screen display New original for Stretched Bar LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | CPT |
| Model Number: | CLAB276FP0A XN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | CLAB276FP0A XN | Diagonal Size: | 27.6 Inch (1/3 Cut Of 32") |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×360 70PPI | Active Area: | 688.896(H)×129.168(V) Mm |
| Outline Dim.: | 703.14(H)×145.02(V)×1.29(D) Mm | Plate Thickness: | 0.50+0.50 Mm |
| D-IC Detail: | COF Built-in 3 Source Chips | Designed For: | Stretched Bar LCD / Digital Signage |
Product Description
CLAB276FP0A XN 27.6 inch LCD Screen display New original for Stretched Bar LCD
CLAA276FP0A XN Product details :
| CPT LCD SCREEN CLAB276FP0A XN | |
| Manufacturer | CPT |
| Model Name | CLAB276FP0A XN |
| Screen Size | 27.6 inch (1/3 cut of 32") |
| Screen Type | CELL, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×360 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 688.896 × 129.168 (H×V) |
| Outline(mm) | 703.14 × 145.02 × 1.29 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 (Typ.)(cd/m²) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Work Mode | FFS, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 25 (Typ.)(Tr+Td) ms |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 4.05% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 72% NTSC |
| Backlight | No B/L |
| Used for | Digital Signage / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 3 source chips |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| CLAA276FP01 XN 27.6 inch LCD Screen display New original for Stretched Bar LCD | |
CLAA276FP0A XN Specifications:
> Fast delivery
> Original & Brand New
> Best price
> Good quality
> Excellent service
> new and original; we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices;
> Warranty of each part.
CLAA276FP0A XN Shippment & Packing
CLAA276FP0A XN Warm Reminder:
ToBrazilbuyers, Need to offer usCNPJ or CPFif ship the goods by DHL/FEDEX/EMS.
ToRussiabuyers, The goods only can be shipped byEMS/ePacket, The buyer need to offerfull name of receiver!
The Duty or custom fees is depend on BUYER country, Not Seller! If need declare low value when shipping , Please advise us in time !
Toremote areasbuyers , If ship the order by FEDEX/DHL , Need to addextra fee USD30.00, Hope buyer can understand us.
CLAA276FP0A XN Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
CLAA276FP0A XN FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order CLAB276FP0A XN ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you declared low value for my order CLAB276FP0A XN when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the lcd panel CLAB276FP0A XN I received can't work ?
A: Our lcd display CLAB276FP0A XN tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
