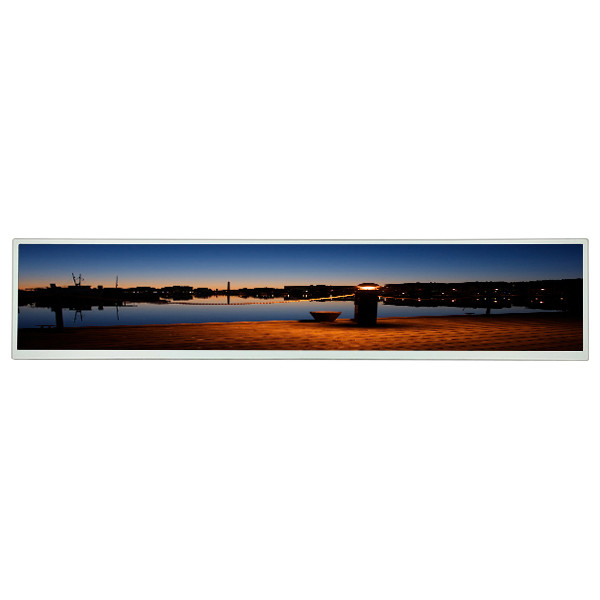

27.6 inch 1920×360 LCD CLAA276FP01 XN tft screen lcd display tft lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CPT |
| Model Number: | CLAA276FP01 XN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | CLAA276FP01 XN | Diagonal Size: | 27.6 Inch (1/3 Cut Of 32") |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×360 70PPI | Active Area: | 688.896(H)×129.168(V) Mm |
| Outline Dim.: | 725.1(H)×166.7(V)mm | Bezel Area: | 692.896(H)×133.168(V) Mm |
| Weight: | 2.06Kgs (Typ.) | Designed For: | Industrial / Outdoor High Brightness / Stretched Bar LCD / Digital Signage |
Product Description
27.6 inch 1920×360 LCD CLAA276FP01 XN tft screen lcd display tft lcd panel
CLAA276FP01 XN Product details :
| CPT LCD SCREEN CLAA276FP01 XN | |
| Manufacturer | CPT |
| Model Name | CLAA276FP01 XN |
| Screen Size | 27.6 inch (1/3 cut of 32") |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×360 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 688.896 × 129.168 (H×V) |
| Outline(mm) | 725.1 × 166.7 (H×V×D) |
| Bezel Area(mm) | 692.896 × 133.168 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1000 (Typ.)(cd/m²) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Work Mode | FFS, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 25 (Typ.)(Tr+Td) ms |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 70K hours , No Driver |
| Mass | 2.06Kgs (Typ.) |
| Used for | Industrial / Outdoor High Brightness / Stretched Bar LCD / Digital Signage |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 27.6 inch 1920×360 LCD CLAA276FP01 XN tft screen lcd display tft lcd panel | |
CLAA276FP01 XN Warranty:
1.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).
2.- We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
3.- One we get the returned items, we will send the replaced ones back as soon as possible.
4.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts
CLAA276FP01 XN Shippment & Packing
CLAA276FP01 XN SHIPPING:
1 We will ship the items within 3working days after the payment is reached.
2 We often ship to customers by UPS/DHL/Fedex and ect,We would like to ship to you which is convenient to you. Please contact us directly and we will use your preferred ways.
3 We are not responsible for any accidents, delays or other issues that we couldn’t control, But we will contact the shipping company which is our long term cooperation.
4 Any import fees or charges are the buy’s responsibility.
CLAA276FP01 XN Warranty & Return Policy:
We offer 3month warranty for all parts. If meet any quality problems within 3month, please contact us on time, we will solve it immediately .We sincerely look forward to establishing long term business relationship with you in the future. If anything we can do for you, just fell free to contact us at your convenience.
CLAA276FP01 XN FAQ:
Q: Do you accept the CLAA276FP01 XN sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of CPT CLAA276FP01 XN ?
A: NEW Product warranty is 90 days , the secondhand goods is 60days.
