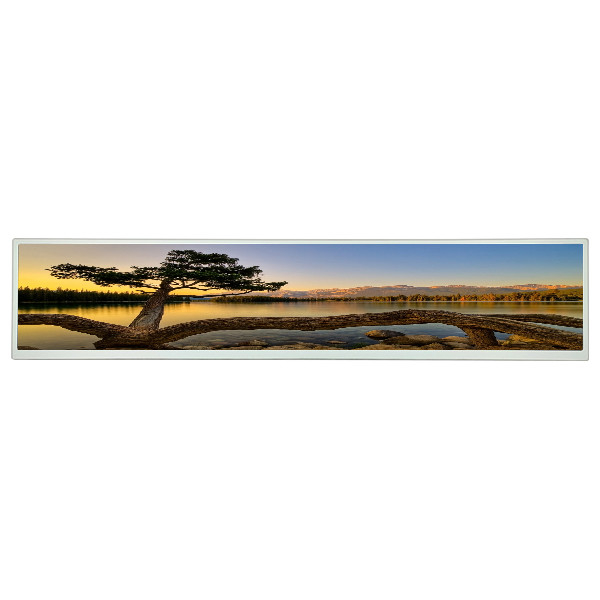

New and original 27.6 inch CLAA276FP0A XN LCD Screen Display MODULES
Product Details:
| Place of Origin: | China |
| Brand Name: | CPT |
| Model Number: | CLAA276FP0A XN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | CLAA276FP0A XN | Screen Size: | 27.6 Inch (1/3 Cut Of 32") |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×360 70PPI | Active Area(mm): | 688.896 × 129.168 (H×V) |
| Outline(mm): | 725.1 × 166.7 (H×V×D) | Bezel Area(mm): | 692.896 × 133.168 (H×V) |
| Mass: | 2.06Kgs (Typ.) | Application: | Industrial / Outdoor High Brightness / Stretched Bar LCD / Digital Signage |
Product Description
New and original 27.6 inch CLAA276FP0A XN LCD Screen Display MODULES
CLAA276FP0A XN Product details :
| CPT LCD SCREEN CLAA276FP0A XN | |
| Manufacturer | CPT |
| Model Name | CLAA276FP0A XN |
| Screen Size | 27.6 inch (1/3 cut of 32") |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×360 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 688.896 × 129.168 (H×V) |
| Outline(mm) | 725.1 × 166.7 (H×V×D) |
| Bezel Area(mm) | 692.896 × 133.168 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1000 (Typ.)(cd/m²) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Work Mode | FFS, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 25 (Typ.)(Tr+Td) ms |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 70K hours , No Driver |
| Mass | 2.06Kgs (Typ.) |
| Used for | Industrial / Outdoor High Brightness / Stretched Bar LCD / Digital Signage |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| New and original 27.6 inch CLAA276FP0A XN LCD Screen Display MODULES | |
Professional sales and wholesale of high-quality industrial control series touch panels, LCD screens, button panels, high-voltage boards. customize touchpads, button panels, and protective films. Please provide drawings or samples. We can make products that meet your needs according to your requirements. Contact us for customized products!!
CLAA276FP0A XN Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
CLAA276FP0A XN Shippment & Packing
CLAA276FP0A XN Shipping & Delivery term:
1.We will ship all your order within 2-3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2.We can shipping all over the world by DHL, UPS, FEde, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs. It will take around 3-6 days to reach your hands.
3. we are pleased to follow your wishes, just feel free to inform us when ordering.
4.Any import fees or charges are the buyer's responsibility.
CLAA276FP0A XN Buyer Reading:
1.Please confirm receipt of products if the items you received, and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution.
2.We only guarantee delivery in time but we couldn't control the epress delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the net workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the epress company in your company.
CLAA276FP0A XN FAQ:
Q: Can You declare my order of CLAA276FP0A XN to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods CLAA276FP0A XN ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of CLAA276FP0A XN ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of CLAA276FP0A XN ?
A: We accept T/T , Paypal , western union .
