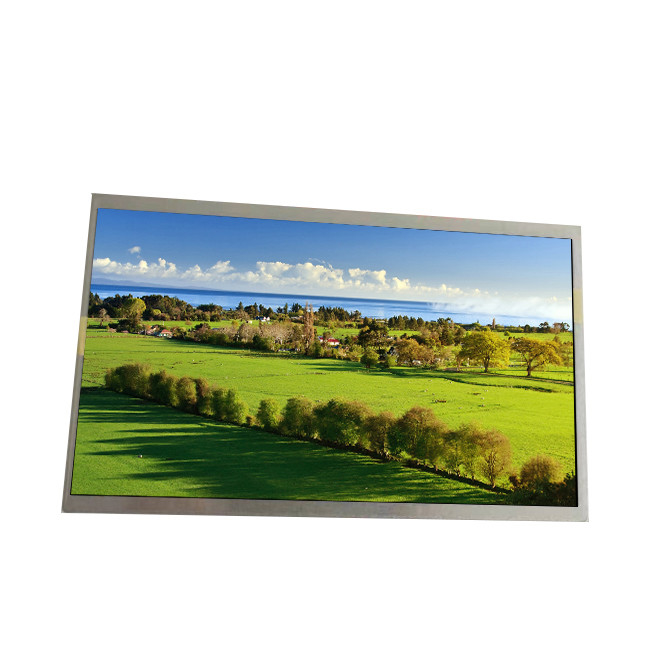

G101STN01.C 1024*600 display with LVDS LCD Panel Screen for Industrial Application
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G101STN01.C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G101STN01.C | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA, 117PPI | Display Area: | 222.72(W)×125.28(H) Mm |
| Outline Size: | 226.34(W)×128.1(H) Mm | Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) |
| Display Colors: | 262K/16.7M , 45% NTSC | Used For: | Industrial |
Product Description
G101STN01.C 1024*600 display with LVDS LCD Panel Screen for Industrial Application
G101STN01.C Product details :
| AUO LCD SCREEN G101STN01.C (AUO10D2) | |
| Panel Brand | AUO |
| Panel Model | G101STN01.C (AUO10D2) |
| Panel Size | 10.1 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×600, WSVGA, 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 226.34(W)×128.10(H) mm |
| Outline Size | 235(W)×143(H)×5.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20 (Typ.)(Tr+Td) ms |
| Display Colors | 262K/16.7M , 45% NTSC |
| Lamp Type | WLED , 50K hours, with LED drive |
| Frequency | 60Hz |
| Designed For | Industrial |
| Panel Weight | 180g (Typ.) |
| Touch Panel | Without |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| G101STN01.C 1024*600 display with LVDS LCD Panel Screen for Industrial Application | |
