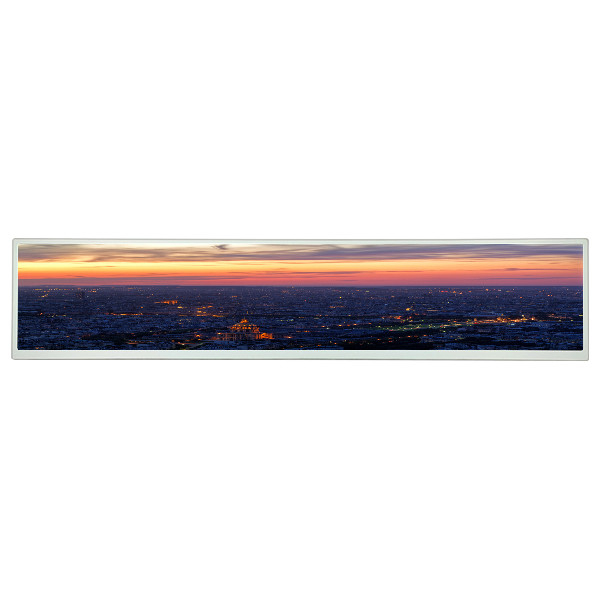

• LCD Screen Panel For 8.6 inch 400×1280 CLAA086WA02BW LCD Display
LCD Screen Panel For 8.6 inch 400×1280 CLAA086WA02BW LCD Display

LCD Screen Panel For 8.6 inch 400×1280 CLAA086WA02BW LCD Display

Product Details:

Place of Origin: China
Brand Name: CPT
Model Number: CLAA086WA02BW

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model: CLAA086WA02BW Diagonal Size: 8.6"
Resolution: 400(RGB)×1280, 156PPI Display Area: 61.5(W)×208.64(H) Mm
Outline Size: 75.1(W)×224.6(H)×5.9(D) Mm Brightness: 1200 Cd/m² (Typ.)
Panel Weight: TBD Application: Industrial / Stretched Bar LCD / Automotive Display

Product Description

LCD Screen Panel For 8.6 inch 400×1280 CLAA086WA02BW LCD Display



CLAA086WA02BW Product details :



CPT LCD SCREEN CLAA086WA02BW
Manufacturer CPT
Model Name CLAA086WA02BW
Screen Size 8.6 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Number 1280×400(RGB) 156PPI
Arrangement RGB Horizontal Stripe
Active Area(mm) 208.64 × 61.5 (H×V)
Outline(mm) 224.6 × 75.1 × 5.9 (H×V×D)
Treatment Antiglare
Luminance 1200 (Typ.)(cd/m²)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/60 (Typ.)(CR≥10)
Work Mode TN, Normally White, Transmissive
Response 25 (Typ.)(Tr+Td) ms
Color Depth 16.7M 70% NTSC
Backlight 8S4P WLED , 30K hours , No Driver
Mass TBD
Used for Industrial / Stretched Bar LCD / Automotive Display
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (1 ch, 8-bit) , 50 pins FPC
Voltage Supply 3.3/5.5/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
LCD Screen Panel For 8.6 inch 400×1280 CLAA086WA02BW LCD Display

CLAA086WA02BW Please read it carefully before buying:


As the price of the product will fluctuate, please provide the model and quantity you need, we will give you the lowest price! We accept inquiries and quotations, we will reply as soon as possible!



CLAA086WA02BW Payment Opinions:


1. T/T (Wire Transfer)


2 WESTERN UNION


3.Paypal


4.Alipay


5.Wechat pay

Please inform us if you have a prefer payment way.



CLAA086WA02BW Shippment & Packing



LCD Screen Panel For 8.6 inch 400×1280 CLAA086WA02BW LCD Display 0

CLAA086WA02BW Shipment:



1.- We can ship the products all the world.



2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.



3.- The item will be sent out with 3days after receiving the payment.



4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.



5.- You can track the situation of your product on website after they are shipped out



CLAA086WA02BW Warranty:


All components we sell the quality with 60-180 days Return policy from the day of shipment.



CLAA086WA02BW FAQ:



Q: If I order CLAA086WA02BW now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: How long will I receive my goods of CLAA086WA02BW ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Q: How to make payment for CLAA086WA02BW ?

A: We accept T/T , Paypal , western union .



Q: Can You declare my order of CLAA086WA02BW at a very low value ?

A: Yes , we can . pls inform us before shipping .
