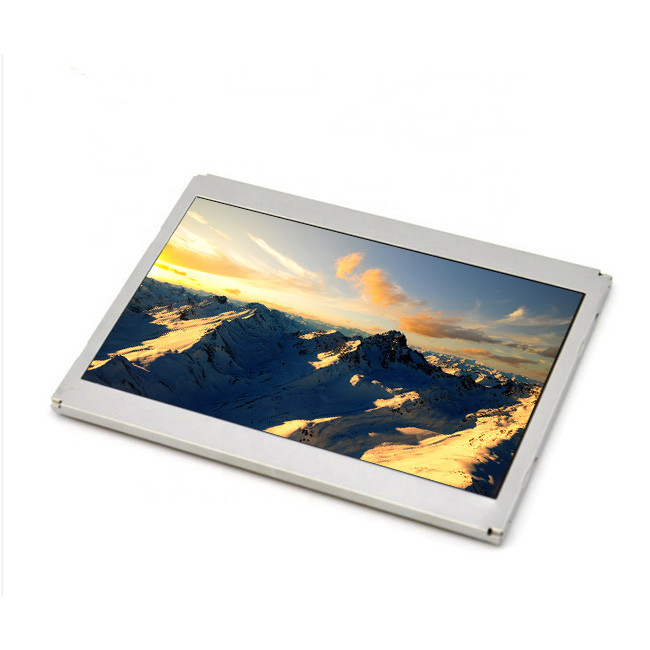

G101STN01.3 10.1 inch display lcd tft lcd screen 1024*600 LVDS lcd module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G101STN01.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G101STN01.3 | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA, 117PPI | Display Area: | 222.72(W)×125.28(H) Mm |
| Outline Size: | 226.34(W)×128.1(H) Mm | Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) |
| Display Colors: | 262K/16.7M , 45% NTSC | Used For: | Industrial |
Product Description
G101STN01.3 10.1 inch display lcd tft lcd screen 1024*600 LVDS lcd module
G101STN01.3 Product details :
| AUO LCD SCREEN G101STN01.3 | |
| Panel Brand | AUO |
| Panel Model | G101STN01.3 |
| Panel Size | 10.1 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×600, WSVGA, 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 222.72(W)×125.28(H) mm |
| Outline Size | 226.34(W)×128.1(H) mm |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/9 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M , 45% NTSC |
| Lamp Type | WLED |
| Frequency | 60Hz |
| Panel Weight | 180g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| G101STN01.3 10.1 inch display lcd tft lcd screen 1024*600 LVDS lcd module | |
G101STN01.3 Shipping Information:
We ship to worldwide by DHL,UPS,FEDEX,TNT,EMS ,Normal airmail and agency. It depends on buyer’s requirements.
Delivery Time: We will ship the items within 2 working days after receive the payment.
G101STN01.3 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
G101STN01.3 Payment:
1.We accept Alipay. Payment is safe and easy, you can pay us online use credit card (VISA or Mastercard) or others !
2.If you can't checkout immediately after auction close, please wait for a few minutes and retry .
3.Payments must be completed within 3 days,thank you .
G101STN01.3 FAQ:
Q: How can I trace my order of G101STN01.3 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of G101STN01.3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of G101STN01.3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
G101STN01.3 Shippment & Packing
