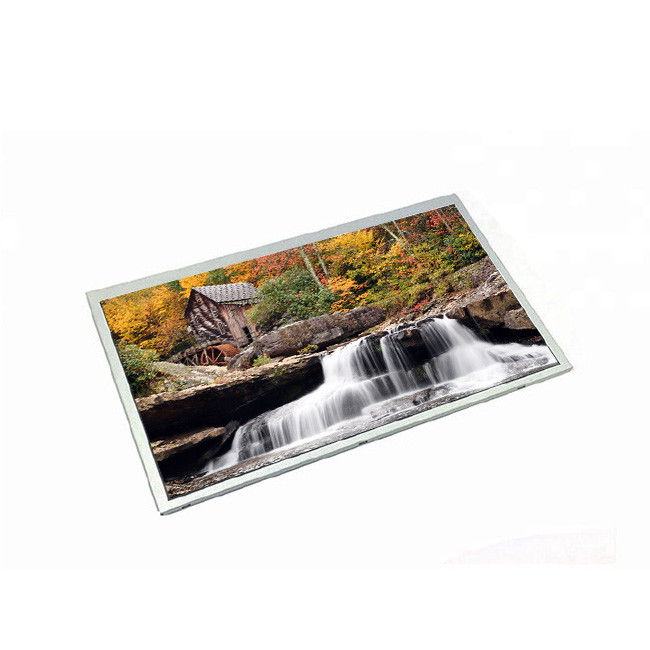

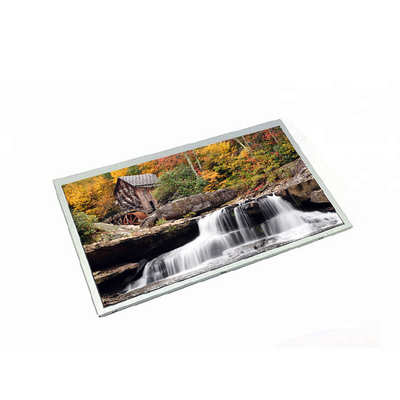

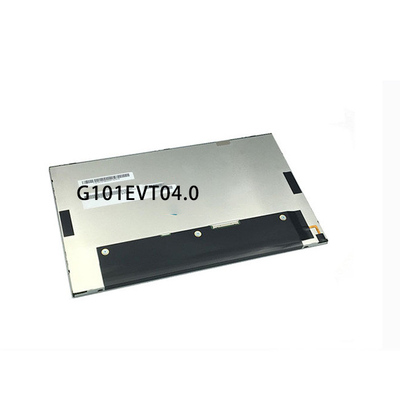

G101EVT04.0 10.1 inch 1280x800 40 pins Connector LCD DISPLAY
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G101EVT04.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G101EVT04.0 | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800[WXGA] 149PPI | Display Area: | 216.96(W)×135.6(H) Mm |
| Outline Size: | 257.35(W)×175.5(H)×6.64(D) Mm | Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) |
| Display Colors: | 262K , 45% NTSC | Used For: | Industrial |
Product Description
G101EVT04.0 10.1 inch 1280x800 40 pins Connector LCD DISPLAY
G101EVT04.0 Product details :
| AUO LCD SCREEN G101EVT04.0 | |
| Panel Brand | AUO |
| Panel Model | G101EVT04.0 |
| Panel Size | 10.1 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800[WXGA] 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Outline Size | 257.35(W)×175.5(H)×6.64(D) mm |
| Surface | Matte (Haze 3%), Hard coating (9H) |
| Brightness | 360 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 20K hours |
| Used for | Industrial |
| Frequency | 60Hz |
| Touchscreen | PCAP |
| Panel Weight | 265g (Max.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , terminal, 40 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| G101EVT04.0 10.1 inch 1280x800 40 pins Connector LCD DISPLAY | |
G101EVT04.0 Shipping Information:
We ship to worldwide by DHL,UPS,FEDEX,TNT,EMS ,Normal airmail and agency. It depends on buyer’s requirements.
Delivery Time: We will ship the items within 2 working days after receive the payment.
G101EVT04.0 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
G101EVT04.0 Contact us:
We have large stock and perfect service, so if you have any RFQ, please kindly contact us.
I will quoto you asap and sent you the best price.
Any questions, please contact us.
Look forward your inquiry.
G101EVT04.0 FAQ:
Q: Can I pay my goods G101EVT04.0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of G101EVT04.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for G101EVT04.0 ?
A: Of course!sample order is welcome !
Q: How to make payment for G101EVT04.0?
A: We accept T/T , Paypal , western union .
G101EVT04.0 Shippment & Packing
