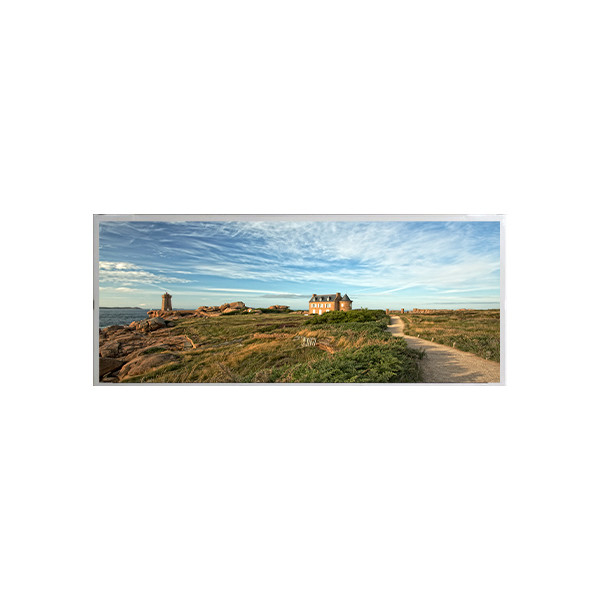

AM-4801920ATZQW-00H FOR 8.8 inch ORIGINAL INDUSTRIAL 1920×480 LCD PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-4801920ATZQW-00H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AM-4801920ATZQW-00H | Screen Size: | 8.8 Inch |
|---|---|---|---|
| Pixel Number: | 1920×480(RGB) 222PPI | Active Area(mm): | 218.88 × 54.72 (H×V) |
| Outline(mm): | 231.3 × 64.3 × 6.4 (H×V×D) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Backlight: | WLED , No Driver | Used For: | Industrial / Stretched Bar LCD / Automotive Display |
Product Description
AM-4801920ATZQW-00H FOR 8.8 inch ORIGINAL INDUSTRIAL 1920×480 LCD PANEL
AM-4801920ATZQW-00H Product details :
| AMPIRE LCD SCREEN AM-4801920ATZQW-00H | |
| Manufacturer | AMPIRE |
| Model Name | AM-4801920ATZQW-00H |
| Screen Size | 8.8 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920×480(RGB) 222PPI |
| Arrangement | RGB Horizontal Stripe |
| Active Area(mm) | 218.88 × 54.72 (H×V) |
| Outline(mm) | 231.3 × 64.3 × 6.4 (H×V×D) |
| Treatment | Hard coating |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Backlight | WLED , No Driver |
| Used for | Industrial / Stretched Bar LCD / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , 40 pins Connector |
| Voltage Supply | 3.3/20/12/-10 (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AM-4801920ATZQW-00H FOR 8.8 inch ORIGINAL INDUSTRIAL 1920×480 LCD PANEL | |
AM-4801920ATZQW-00H Note:
Please note color needed before buying,If the color is not marked, we will send it at random. If you are not satisfied after receiving the goods, you can return and change the goods.But buyer have to pay for the round-trip transportation shipping fee, Please read the product description carefully,thank you!
AM-4801920ATZQW-00H Payment :
Full payment must be paid within 7 days after placing your order .
We will make delivery of the goods within 3 working days after receiving your payment .
The buyer are responsible for any tax and/or duties charged by their country. Any import charges or fees are the buyers responsibility .
AM-4801920ATZQW-00H Shippment & Packing
AM-4801920ATZQW-00H Shipment:
Make sure your shipping address and the telephone information is correct .
HK POST,SG POST,DHL ,FEDEX,TNT,UPS and EMS are available .
We will provide the tracking no for all the shipping method.You can track it on their official wesite.
Buyers from Brazil need to provide CPF number in advance if you choose DHL or UPS,otherwise,we have to ship via EMS.
Except HK/SG post only use EMS for Russia buyers .
All the buyers need to pay extra fee for remote area service by DHL,UPS or Fedex ,but no need for EMS .
AM-4801920ATZQW-00H Garrantee:
If you are not satisfied with your purchase , you can exchange the items received but you must contact us within 3days of the receipt of your order,but you should pay all additional shipping fee incurred and the items returned should be kept in their original status .
If you wish to exchange defective or incorrect shipped goods please contact us within 3days after receiving the goods .
Please note that for exchange part we will ship it out as soon as we get the returned one
AM-4801920ATZQW-00H FAQ:
Q: Do you accept the AM-4801920ATZQW-00H sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you test the lcd panel AM-4801920ATZQW-00H before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of AMPIRE LCD PANEL AM-4801920ATZQW-00H ?
A: 90DAYS.
