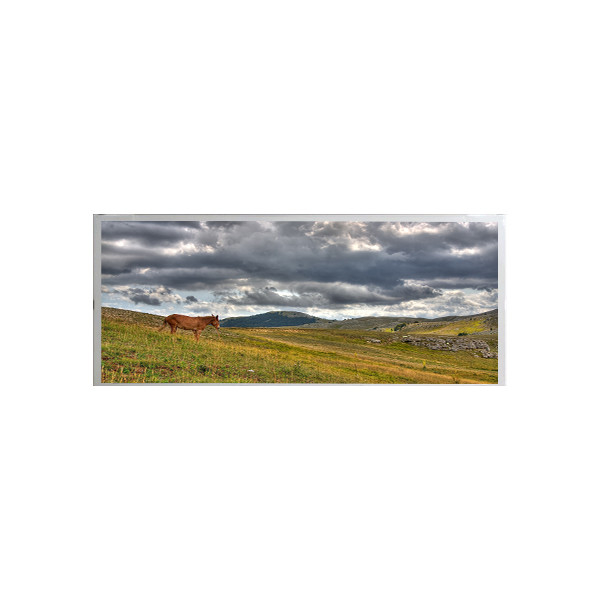

AMPIRE 19.1 inch Industrial LCD screen AM-1920360ATZQW-00
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1920360ATZQW-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AM-1920360ATZQW-00 | Diagonal Size: | 19.1 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×360 102PPI | Active Area: | 476.64(H)×89.37(V) Mm |
| Outline Dim.: | 502.8(H)×127.8(V)mm | Bezel Area: | 480.64(H)×93.37(V) Mm |
| Support Color: | 16.7M | Designed For: | Industrial / Outdoor High Brightness / Stretched Bar LCD / Automotive Display |
Product Description
AMPIRE 19.1 inch Industrial LCD screen AM-1920360ATZQW-00
AM-1920360ATZQW-00 Product details :
| AMPIRE LCD SCREEN AM-1920360ATZQW-00 | |
| Manufacturer | AMPIRE |
| Model Name | AM-1920360ATZQW-00 |
| Screen Size | 18.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×360 102PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 476.64 × 89.37 (H×V) |
| Outline(mm) | 502.8 × 127.8 (H×V×D) |
| Bezel Area(mm) | 480.64 × 93.37 (H×V) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Max.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | MVA, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Backlight | WLED |
| Used for | Industrial / Outdoor High Brightness / Stretched Bar LCD / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Voltage Supply | 5V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| AMPIRE 19.1 inch Industrial LCD screen AM-1920360ATZQW-00 | |
AM-1920360ATZQW-00 Please note :
Since the parts updates everyday ,we will send 100% compatible new part while the same code as we show here out of stock. if you do not accept compatible code pls do not bid it .Thank you for your understanding !
AM-1920360ATZQW-00 Warning:
*Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
*We just can guarantee the one you received that will be compatible with your LCD Screen,
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title/description/photo states is out of supply in the market, thank you!
1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.
2. After receiving the goods, do not tear the film, do not stick the glue on the back, test the machine first, remove the old screen, insert the new screen, and check whether the sensitivity is normal. Please be sure to try the machine first. Make sure the quality is ok. Install again.it is easy to burn the motherboard and touch screen, we are not responsible.
3.before connection test the power must be disconnected ,Otherwise it will burn the motherboard and touch screen easily.If it doesn't work, we won't be responsible.
AM-1920360ATZQW-00 Shippment & Packing
AM-1920360ATZQW-00 Shipment:
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
AM-1920360ATZQW-00 Garrantee:
We rigorously test and check our items to meet the toughest standards prior to shipping, if you encounter any problems please contact us via messenger, We will do everything we can to make sure your happy with your order.
We offer 90 days warranty.
AM-1920360ATZQW-00 FAQ:
Q: Can You declare my order of AM-1920360ATZQW-00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of AM-1920360ATZQW-00 ?
A:Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of AM-1920360ATZQW-00 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods AM-1920360ATZQW-00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
