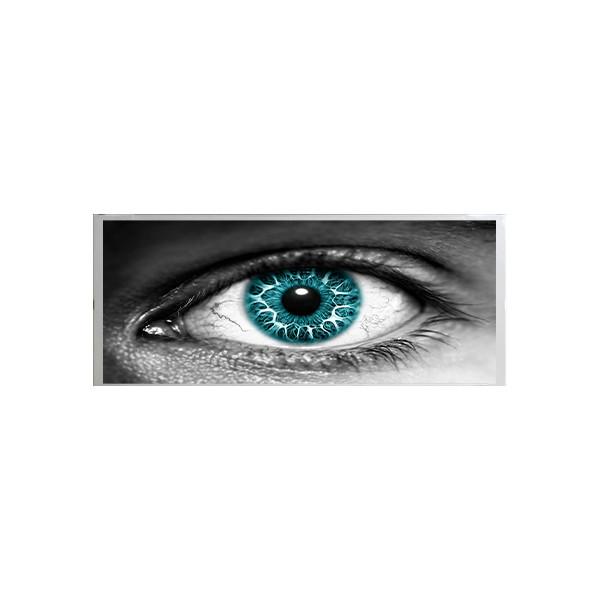

AM-1920357ATZQW-00 LCD display screen Replacement maintenance lcd touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AMPIRE |
| Model Number: | AM-1920357ATZQW-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AM-1920357ATZQW-00 | Diagonal Size: | 28.0 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×358 69PPI | Active Area: | 698.4(H)×129.86(V) Mm |
| Outline Dim.: | 733.78(H)×165.34(V)×20.8(D) Mm | Bezel Area: | 702.4(H)×133.86(V) Mm |
| Weight: | 2.10Kgs (Typ.) | Designed For: | Industrial / Outdoor High Brightness / Stretched Bar LCD |
Product Description
AM-1920357ATZQW-00 LCD display screen Replacement maintenance lcd touch screen
AM-1920357ATZQW-00 Product details :
| AMPIRE LCD SCREEN AM-1920357ATZQW-00 | |
| Manufacturer | AMPIRE |
| Model Name | AM-1920357ATZQW-00 |
| Screen Size | 28.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×358 69PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 698.4 × 129.86 (H×V) |
| Outline(mm) | 733.78 × 165.34 × 20.8 (H×V×D) |
| Bezel Area(mm) | 702.4 × 133.86 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 6.5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | MVA, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Backlight | WLED , 30K hours , No Driver |
| Mass | 2.10Kgs (Typ.) |
| Used for | Industrial / Outdoor High Brightness / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Voltage Supply | 12V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| AM-1920357ATZQW-00 LCD display screen Replacement maintenance lcd touch screen | |
AM-1920357ATZQW-00 Our Products:
Our products are 100% tested before shippment, so the quality is absolutely guaranteed. Due to some items are fragile, damage might have happened during the transportation. When you receive the goods are damage, please contact us.We will resend or give you refund. Do not immediately open dispute,this is important for the growth of the company, thank you!
AM-1920357ATZQW-00 Payment:
1.We accept Creditcard,Western union, all major creditcards are accepted through secure payment processor ESCROW by Alipay.
2.Please leave your note for your special request (e.g. COLORS or SIZE) when you pay the order.
3.Any special request can not be accepted after 24 hours of payment,because most of orders will be processed instantly and same day dispatched.
AM-1920357ATZQW-00 Shippment & Packing
AM-1920357ATZQW-00 Shipping:
1. The items you ordered will be shipped out in 1-3 business days by china post air mail when your payment is clear. The arrival time 5-30 business days to united states usually.
2.Customs duty is obligation and liability of a citizen in your country, so buyer should be responsible for any tax and custom duty incurred.Generally, the delay or failure delivery is sometimes caused by the policy of different customs. Therefore,please double check your local customs policy carefully before purchase,or we will never respossible for any failure delivery related destination custom issue.
3. We ensure dispatch the item within 1-3 business days,however you bought the item from opposite side of the earth, so it needs a little longer time to deliver.Please place order only if you agree with the shipping time and all the terms below.
AM-1920357ATZQW-00 Contact us:
1.You can contact us by leaving us an message or email us.
2.We can respond Email within 24 Hours.
AM-1920357ATZQW-00 FAQ:
Q: If I order AM-1920357ATZQW-00 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment for AM-1920357ATZQW-00 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of AM-1920357ATZQW-00 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of AMPIRE AM-1920357ATZQW-00 ?
A: 90days warranty .
