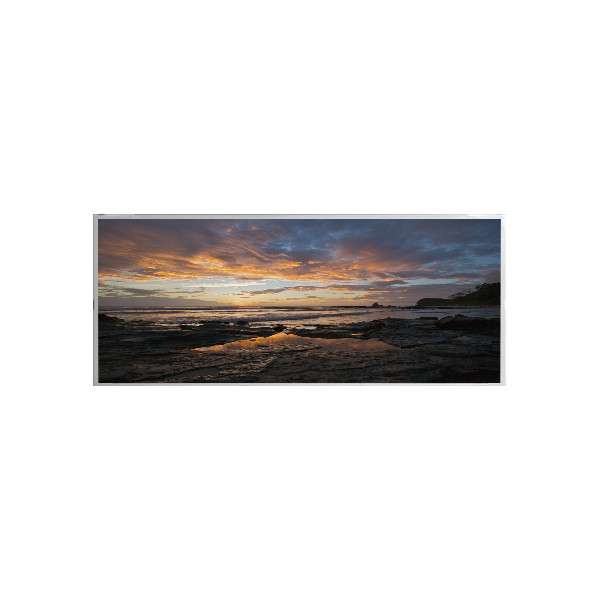

AM-800256ATMQW-A0H 6.3 inch LCD Panel LCD screen touch screen
Product Details:
Place of Origin: | China |
Brand Name: | AMPIRE |
Model Number: | AM-800256ATMQW-A0H |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Panel Model: | AM-800256ATMQW-A0H | Panel Size: | 6.3" (8/15 Cut Of 7.0") |
---|---|---|---|
Resolution: | 800(RGB)×256, 133PPI | Display Area: | 152.4(W)×48.768(H) Mm |
Bezel Opening: | 155.3(W)×51.69(H) Mm | Outline Size: | 165(W)×66.96(H)×7.06(D) Mm |
Display Colors: | 262K 45% NTSC | Application: | Industrial / Stretched Bar LCD |
Product Description
AM-800256ATMQW-A0H 6.3 inch LCD Panel LCD screen touch screen
AM-800256ATMQW-A0H Product details :
AMPIRE LCD SCREEN AM-800256ATMQW-A0H | |
Manufacturer | AMPIRE |
Model Name | AM-800256ATMQW-A0H |
Screen Size | 6.3 inch (8/15 cut of 7.0") |
Screen Type | LCM , a-Si TFT-LCD |
Pixel Number | 800(RGB)×256 133PPI |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 152.4 × 48.768 (H×V) |
Outline(mm) | 165 × 66.96 × 7.06 (H×V×D) |
Bezel Area(mm) | 155.3 × 51.69 (H×V) |
Luminance | 500 cd/m² (Typ.) |
Contrast Ratio | 400 : 1 (Typ.) (TM) |
Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
Response | 5/11 (Typ.)(Tr/Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 45% NTSC |
Backlight | 3S10P WLED , 40K hours , With LED Driver |
Used for | Industrial / Stretched Bar LCD |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
AM-800256ATMQW-A0H 6.3 inch LCD Panel LCD screen touch screen |
AM-800256ATMQW-A0H About US:
We Promise to:
1:Manufacture only the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
AM-800256ATMQW-A0H Shippment & Packing
AM-800256ATMQW-A0H Payment & Shipping:
We accept Credit card,PayPal payment and bank transfer.Items are only shipped after payments received.
We can ship your orders only to your confirmed address.Your address and full name must match your shipping address.
The buyer is responsible for any applicable import duties and local taxes.Please verify your customs duties before purchase.
If you don't receive your item on time ,please contact us immediaately for further assistance.
Items shipped from our Shenzhen factory warehouse.It usually takes approximately 7-15 days to receive order, not include weekend and holiday.
Delivery time depends on postal process and other factors, it may takes up to 22 business days.
AM-800256ATMQW-A0H Contact us:
We care about our valued buyers, and if you have any questions, our customer service staff will be happy to assist you. Due to time differences, please allow us to respond within 24 business hours.
Thank you for your support, I hope that you have a pleasant business shopping trip in our store, welcome to your next visit!
AM-800256ATMQW-A0H FAQ:
Q: Do you accept the AM-800256ATMQW-A0H sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: Can you test the lcd panel AM-800256ATMQW-A0H before shipping ?
A: 90DAYS.
Q: How long will I receive my goods of lcd AM-800256ATMQW-A0H ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
