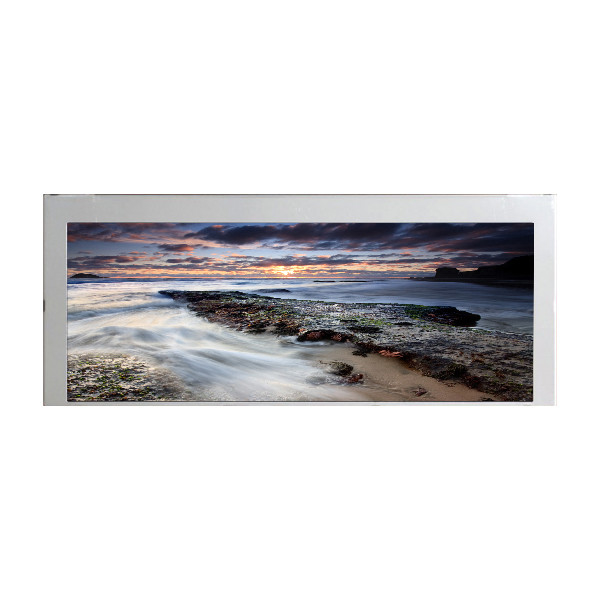

AA078AA51 7.8 inch LCD Screen Display Panel Brand New
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA078AA51 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AA078AA51 | Diagonal Size: | 7.8 Inch (8/15 Cut Of 8.5") |
|---|---|---|---|
| Pixel Format: | 800(RGB)×300 109PPI | Active Area(mm): | 184.8(H)×69.3(V) Mm |
| Outline(mm): | 207(H)×86(V)mm | Treatment: | Antiglare, Hard Coating (3H) |
| Weight: | 200g (Typ.) | Used For: | Industrial / Stretched Bar LCD |
Product Description
AA078AA51 7.8 inch LCD Screen Display Panel Brand New
AA078AA51 Product details :
| Mitsubishi LCD SCREEN AA078AA51 | |
| Manufacturer | Mitsubishi |
| Model Name | AA078AA51 |
| Screen Size | 7.8 inch (8/15 cut of 8.5") |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×300 109PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 184.8 × 69.3 (H×V) |
| Outline(mm) | 207 × 86 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 200g (Typ.) |
| Used for | Industrial / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| AA078AA51 7.8 inch LCD Screen Display Panel Brand New | |
AA078AA51 Our features are:
1. Original quality guarantee.
2. Superior After-Sale service;
3. The most competitive prices here can provide;
4. Small order quantity accepted.
5. Offer 12 months of warranty;
6. Experienced staff can help you to solve your problem anytime.
With wide range, superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia. And our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
AA078AA51 Payment Information:
T/T (Wire Transfer) / PayPal / western Union / MoneyGram
AA078AA51 Shippment & Packing
AA078AA51 Shipment Information:
All the parts will be tested before shipment.
We can ship to you by DHL / FedEX / TNT / UPS / EMS… ,
you can choose the shipping method you prefer.
The buyer is responsible for any tax or duty charged by their country.
AA078AA51 FAQ:
Q: If I order AA078AA51 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty of AA078AA51 ?
A: 90days warranty .
Q: How can I trace my order of TIANMA AA078AA51 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods AA078AA51 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
