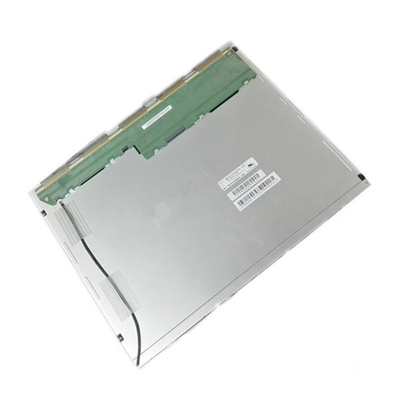

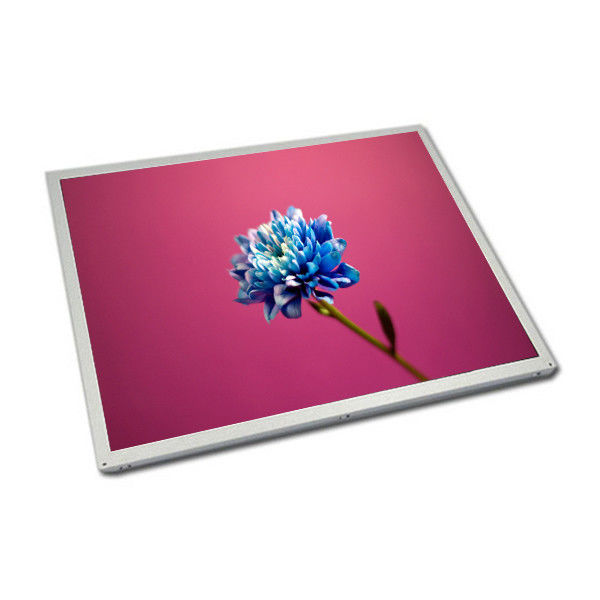

15.0 inch display TM150TDSG52 TFT LCD screen with 1024(RGB)×768 TM150TDSG52
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM150TDSG52 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM150TDSG52 | Screen Size: | 15.0 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768 (XGA) 85PPI | Active Area(mm): | 304.128 × 228.096 (H×V) |
| Outline(mm): | 326.5 × 253.5 × 12.1 (H×V×D) | Bezel Area(mm): | 307.4 × 231.3 (H×V) |
| Mass: | 1.00Kgs (Typ.) | Used For: | Industrial |
Product Description
15.0 inch display TM150TDSG52 TFT LCD screen with 1024(RGB)×768 TM150TDSG52
TM150TDSG52 Product details :
| TIANMA LCD SCREEN TM150TDSG52 | |
| Manufacturer | TIANMA |
| Model Name | TM150TDSG52 |
| Screen Size | 15.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 85PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 304.128 × 228.096 (H×V) |
| Outline(mm) | 326.5 × 253.5 × 12.1 (H×V×D) |
| Bezel Area(mm) | 307.4 × 231.3 (H×V) |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/5 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 60% NTSC |
| Backlight | WLED , 30K hours , With LED Driver |
| Mass | 1.00Kgs (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 65 °C |
| 15.0 inch display TM150TDSG52 TFT LCD screen with 1024(RGB)×768 TM150TDSG52 | |
We offer high quality, fast delivery, competitive price for our customers;
1. Please send your RFQ(request for quoting) to get latest price;
2. we will ship it in 1-3 working days after your paying
3. We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
4. We have a large stock and the prices are variable,If needed please contact us.
TM150TDSG52 Buyer Reading:
1.We guarantee 90 days.
2.Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated.So please consult the stock situation when you inquire.All references are new and unused , original packaging, unless specified.
3. lf you receive some items of imperfect quality, we will resiponsibly arrange for a refund or replacement. But objects must remain in their original state.
4.Regarding payment, we can accept bank transfer, PayPal, Western Union, quick cash,Alipay and Ecrow terms.
TM150TDSG52 Shippment & Packing
TM150TDSG52 Packaging Details:
1. new in retail box or packed as bulk one per you required
2. pack materials with outer carton box and put on your shipping mark before shipping
3. professrional packing make sure shock-proof and safe arrival.
TM150TDSG52 Shipping:
1.We can ship the items by DHL, Fedex, TNT, UPS, EMS, Aramex and China Mail Post
2. We need 1-3 days to process the goods after the payment arrived
3. We are not responsible for any accidents or delays when goods were picked by logistics company. The buyers should be responsible for the import fees when goods arrived at the destination.
TM150TDSG52 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the TM150TDSG52 sample order?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel TM150TDSG52 before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of TIANMA LCD SCREEN TM150TDSG52 ?
A: 90DAYS.
Q: How long will I receive my goods of lcd TM150TDSG52 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
