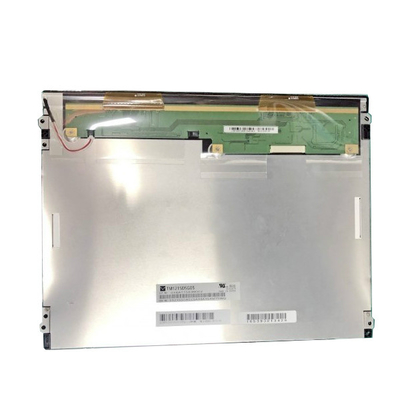

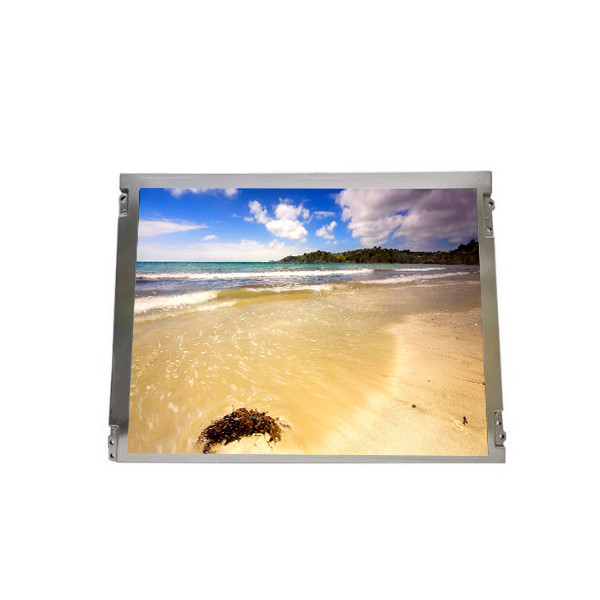

12.1 inch screen 800(RGB)×600 display monitors TM121SDSG05 LCD Module Display

12.1 inch screen 800(RGB)×600 display monitors TM121SDSG05 LCD Module Display

Product Details:

Place of Origin: China
Brand Name: TIANMA
Model Number: TM121SDSG05

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Panel Model: TM121SDSG05 Panel Size: 12.1"
Resolution: 800(RGB)×600, SVGA, 82PPI Display Area: 246(W)×184.5(H) Mm
Outline Size: 279(W)×209(H)×9(D) Mm Contrast Ratio: 700:1 (Typ.) (TM)
Weight: 540g (Typ.) Application: Industrial

Product Description

12.1 inch screen 800(RGB)×600 display monitors TM121SDSG05 LCD Module Display



TM121SDSG05 Product details :



TIANMA LCD SCREEN TM121SDSG05
Manufacturer TIANMA
Model Name TM121SDSG05
Screen Size 12.1 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Number 800(RGB)×600 (SVGA) 82PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 246 × 184.5 (H×V)
Outline(mm) 279 × 209 × 9 (H×V×D)
Luminance 350 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/65/75 (Typ.)(CR≥10)
Response 35 (Typ.)(Tr+Td) ms
Work Mode TN, Normally White, Transmissive
Color Depth 262K/16.7M 55% NTSC
Backlight WLED , 30K hours , With LED Driver
Mass 540g (Typ.)
Used for Industrial
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
12.1 inch screen 800(RGB)×600 display monitors TM121SDSG05 LCD Module Display

TM121SDSG05 About US:



We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 1.5-88 inches is between the various industrial screen, Theya are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.



We are saleing TFT LCD module for the PDA,GPS,game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.



TM121SDSG05 Our Services:



1.Our Operation Orinciple:


1) Quality first, customer supreme.


2) Integrity management, credit highest.



2.Our service:


1) We provide professional one-stop electronic components supporting services.



TM121SDSG05 Shippment & Packing



12.1 inch screen 800(RGB)×600 display monitors TM121SDSG05 LCD Module Display 0

TM121SDSG05 Shipping:


1.We can shipping all over the world by DHL, Fedex,TNT, UPS,EMS, Aramex and China Mail Post


2.The packaging is very safe and strong. Please nitfy me you have any special needs3. lt will take around 3-7 days to reach your hands.


3.We are not responsible for any accidents or delays when goods were picked by logistics compa-ny.The buyers should be responsible for the import fees when goods arrived at the destination.



TM121SDSG05 FAQ:



Q: Do you accept the TM121SDSG05 sample order?

A: Yes , sample order is welcome.



Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.



Q: Can you test the lcd panel TM121SDSG05 before shipping ?

A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.



Q: When happen if I received the lcd panel TM121SDSG05 doesn't work ?

A: First , Our lcd TM121SDSG05 was tetsed ok before shipping , pls check the connect cable again ,If still has problems , we accept the return or exchange it .



Q: How long will I receive my goods of lcd TM121SDSG05 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
