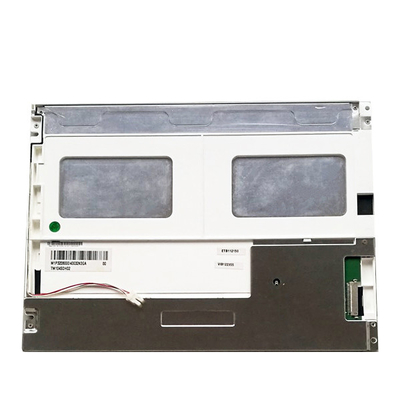

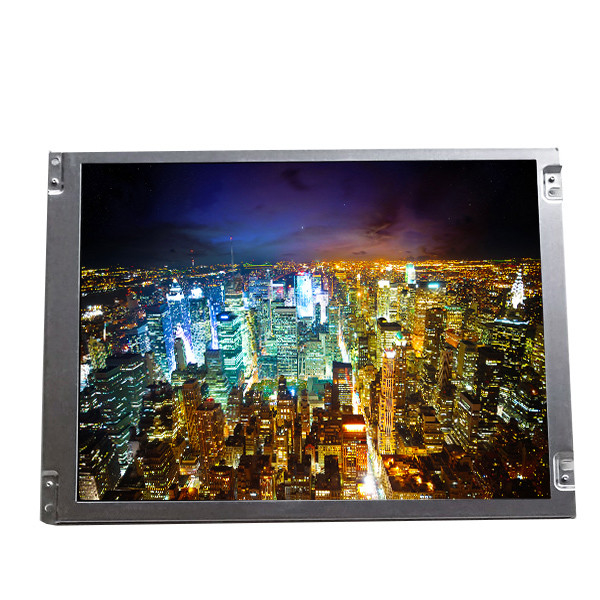

TM104SDH02 original 10.4 inch 800(RGB)×600 LCD display panel for TIANMA
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM104SDH02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TM104SDH02 | Panel Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 96PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 214.8(W)×162.5(H) Mm | Outline Size: | 243(W)×179.4(H)×8.5(D) Mm |
| Panel Weight: | 437g | Application: | Industrial |
Product Description
TM104SDH02 original 10.4 inch 800(RGB)×600 LCD display panel for TIANMA
TM104SDH02 Product details :
| TIANMA LCD SCREEN TM104SDH02 | |
| Manufacturer | TIANMA |
| Model Name | TM104SDH02 |
| Screen Size | 10.4 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×600 (SVGA) 96PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 211.2 × 158.4 (H×V) |
| Outline(mm) | 243 × 179.4 × 8.5 (H×V×D) |
| Bezel Area(mm) | 214.8 × 162.5 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 50% NTSC |
| Backlight | 5S8P WLED , 50K hours , No Driver |
| Mass | 437g |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C |
| TM104SDH02 original 10.4 inch 800(RGB)×600 LCD display panel for TIANMA | |
TM104SDH02 Payment:
1. We accept Escrow, Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....
2. If you have any problems of payment, please contact us.
TM104SDH02 Shippment & Packing
TM104SDH02 SHIPPING:
1.We will ship the items within 3working days after the payment is reached.
2.We often ship to customers by UPS/DHL/Fedex and ect,We would like to ship to you which is convenient to you. Please contact us directly and we will use your preferred ways.
3.We are not responsible for any accidents, delays or other issues that we couldn’t control, But we will contact the shipping company which is our long term cooperation.
4.Any import fees or charges are the buy’s responsibility.
TM104SDH02 Refund & Replacement:
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items are defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
TM104SDH02 contact us:
We have large stock and perfect service, so if you have any RFQ, please kindly contact us.
I will quoto you asap and sent you the best price.
Any questions, please contact us.
Look forward your inquiry.
TM104SDH02 FAQ:
Q: Can You declare my order of TM104SDH02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TM104SDH02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TM104SDH02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of TM104SDH02 ?
A: we will give you tracking number then you can trace your order from website.
