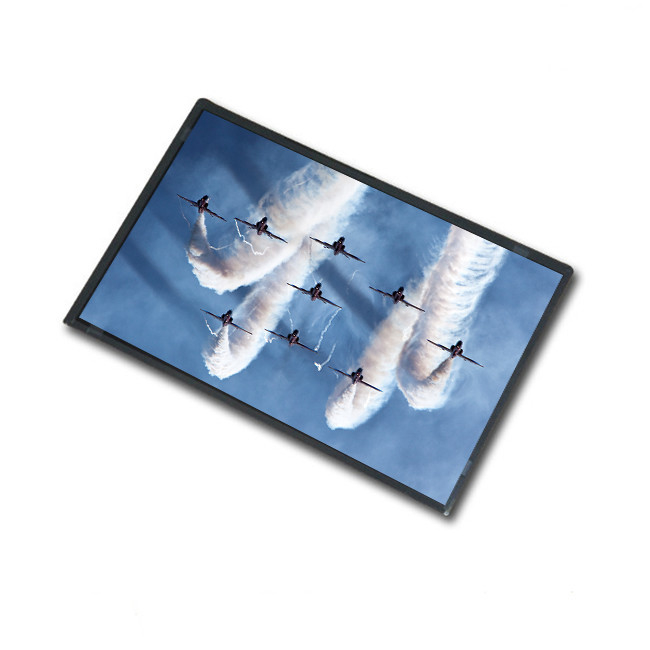

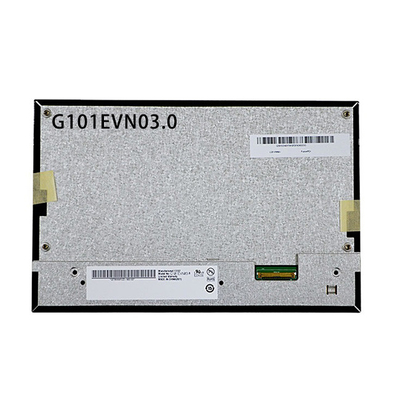

G101EVN03.0 For AUO 10.1 inch Industrial-Grade LCD Screen 1000 Brightness 1280*800 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G101EVN03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G101EVN03.0 | Diagonal Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×800[WXGA] 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Outline Dim.: | 227.69 × 148.31 × 7.75 Mm (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) |
| Display Colors: | 262K/16.2M , 45% NTSC | Designed For: | Industrial Outdoor High Brightness |
Product Description
G101EVN03.0 For AUO 10.1 inch Industrial-Grade LCD Screen 1000 Brightness 1280*800 Resolution
G101EVN03.0 Product details :
| AUO LCD SCREEN G101EVN03.0 | |
| Panel Brand | AUO |
| Panel Model | G101EVN03.0 |
| Panel Size | 10.1 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800[WXGA] 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96 × 135.6 mm (H×V) |
| Outline Size | 227.69 × 148.31 × 7.75 mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 1000 (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K/16.2M , 45% NTSC |
| Lamp Type | WLED , 50K hours, no driver |
| Used for | Industrial Outdoor High Brightness |
| Frequency | 60Hz |
| Panel Weight | 350g (Max.) |
| Touchscreen | Without |
| Signal Interface | LVDS (1 ch, 6/8-bit) , terminal, 40 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -30 ~ 70 °C Operating temperature: -20 ~ 60 °C |
| G101EVN03.0 For AUO 10.1 inch Industrial-Grade LCD Screen 1000 Brightness 1280*800 Resolution | |
G101EVN03.0 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
G101EVN03.0 Our service:
> Fast delivery
> 90days warranty
> original,High quality
> Full tested before shipping.
G101EVN03.0 Warranty:
1.- 90days' warranty..
2.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition)
3.- We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.- One we get the returned items, we will send the replaced ones back as soon as possible.
5.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts
G101EVN03.0 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item, please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
G101EVN03.0 Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
G101EVN03.0 Refund&Return:
1. If the item is defective, pls notify us within 3 days after receiving.
2. items should be returned with original package if possible.
G101EVN03.0 V8 FAQ:
Q: Can I pay my order of G101EVN03.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of G101EVN03.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of G101EVN03.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of G101EVN03.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
G101EVN03.0 Shippment & Packing
