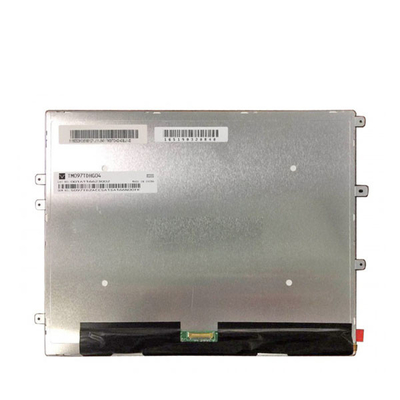

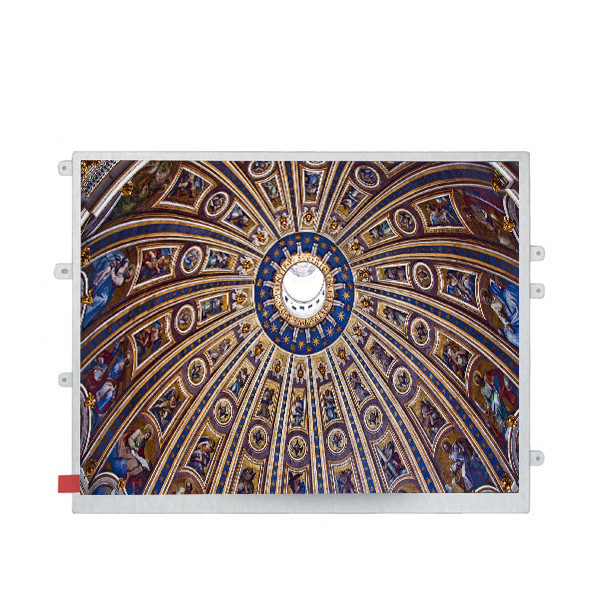

Industrial Tianma 9.7 inch 1024×768 TFT LCD Display TM097TDHG04-00
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM097TDHG04-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TM097TDHG04-00 | Diagonal Size: | 9.7 Inch |
|---|---|---|---|
| Pixel Format: | 196.608(H)×147.456(V) Mm | Active Area: | 170.4(W)×127.8(H) Mm |
| Outline Dim.: | 210.2(H)×166.3(V)×5.85(D) Mm | Bezel Area: | 200.91(H)×152.27(V) Mm |
| Weight: | 200g (Typ.) | Designed For: | Pad & Tablet / Industrial |
Product Description
Industrial Tianma 9.7 inch 1024×768 TFT LCD Display TM097TDHG04-00
TM097TDHG04-00 Product details :
| TIANMA LCD SCREEN TM097TDHG04-00 | |
| Manufacturer | TIANMA |
| Model Name | TM097TDHG04-00 |
| Screen Size | 9.7 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 132PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 196.608 × 147.456 (H×V) |
| Outline(mm) | 210.2 × 166.3 × 5.85 (H×V×D) |
| Bezel Area(mm) | 200.91 × 152.27 (H×V) |
| Treatment | Clear |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 20/25 (Typ./Max.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% NTSC |
| Backlight | 6S6P WLED , 30K hours , No Driver |
| Mass | 200g (Typ.) |
| Used for | Pad & Tablet / Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Industrial Tianma 9.7 inch 1024×768 TFT LCD Display TM097TDHG04-00 | |
TM097TDHG04-00 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item,please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
TM097TDHG04-00 Shippment & Packing
TM097TDHG04-00 Packing&Shipping:
1.All the goods are packaged carefully with waterproof film
2.Protected by Hard Cartoon or Wooden Case
3.Lead time: generally 3-5 days after getting payment
4.We have international logistics company,more choices for shipment and more cheap,like FedEX,DHL,TNT,UPS,By Sea/Air
TM097TDHG04-00 Warranty:
1.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).
2.- We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
3.- One we get the returned items, we will send the replaced ones back as soon as possible.
4.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts
TM097TDHG04-00 After Sales Service:
YONGS company is focusing on products and services
We believe the quality and services are the guarantee of success.They will help us win the trust.Welcome to communicate with us.If you have questions,please contact us.That's important to us,Thank you.
TM097TDHG04-00 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: How to order TIANMA LCD TM097TDHG04-00 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the TM097TDHG04-00 before shipping ?
A: Of course , our lcd panel TM097TDHG04-00 was Strictly tested before shipping.
Q: What happen if the lcd panel TM097TDHG04-00 received can't work ?
A: TIANMA TM097TDHG04-00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
