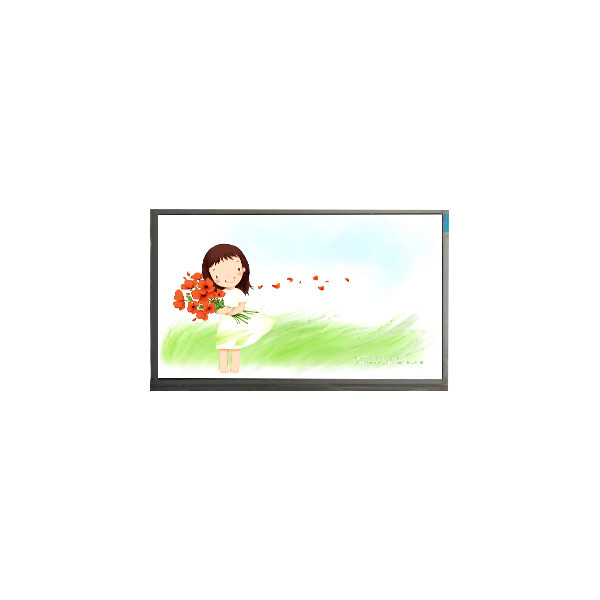

M236HKG-L30 23.6 inch 1920*1080 Touch TFT LCD Screen Display

Brand Name:	Innolux
Model Number:	M236HKG-L30
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model:

M236HKG-L30

Diagonal Size:

23.6"

Pixel Format:

1920(RGB)×1080, FHD 93PPI

Active Area:

521.28(W)×293.22(H) Mm

Outline Dim.:

550(H)×325(V)×15.63(D)mm

Luminance:

250 Cd/m² (Typ.)

450 Cd/m² (Typ.):

16.7M 72%NTSC

Designed For:

Desktop Monitor

Touch Panel:

PCAP, Optical Bonding, USB

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

M236HKG-L30 23.6 inch 1920*1080 Touch TFT LCD Screen Display

M236HKG-L30 Product details :

Brand	Innolux
Model P/N	M236HKG-L30
Diagonal Size	23.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	521.28(W)×293.22(H) mm
Bezel Opening	535.08(W)×307.02(H) mm
Outline Dim.	550(H)×325(V)×15.63(D)mm
Treatment	Hard coating (6H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.5/4 (Typ.)(Tr/Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72%NTSC
Light Source	WLED [4 strings], 30K hours, W/O Driver
Weight	2.57/2.67Kgs (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	PCAP, Optical Bonding, USB
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M236HKG-L30 Our service:

> Fast delivery

> 90days warranty

> original,High quality

> Full tested before shipping.

M236HKG-L30 Payment:

1. We accept Escrow, Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....

2. If you have any problems of payment, please contact us.

M236HKG-L30 SHIPPING:

1 We will ship the items within 3working days after the payment is reached.

2 We often ship to customers by UPS/DHL/Fedex and ect,We would like to ship to you which is convenient to you. Please contact us directly and we will use your preferred ways.

3 We are not responsible for any accidents, delays or other issues that we couldn’t control, But we will contact the shipping company which is our long term cooperation.

4 Any import fees or charges are the buy’s responsibility.

M236HKG-L30 Refund&Return:

1. If the item is defective, pls notify us within 3 days after receiving.

2. items should be returned with original package if possible.

M236HKG-L30 FAQ:

Q: Can you tested the M236HKG-L30 before shipping ?

A: Of course , our lcd panel M236HKG-L30 was Strictly tested before shipping.

Q: How to order M236HKG-L30 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel M236HKG-L30 received can't work ?

A:M236HKG-L30 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

M236HKG-L30 Shippment & Packing
